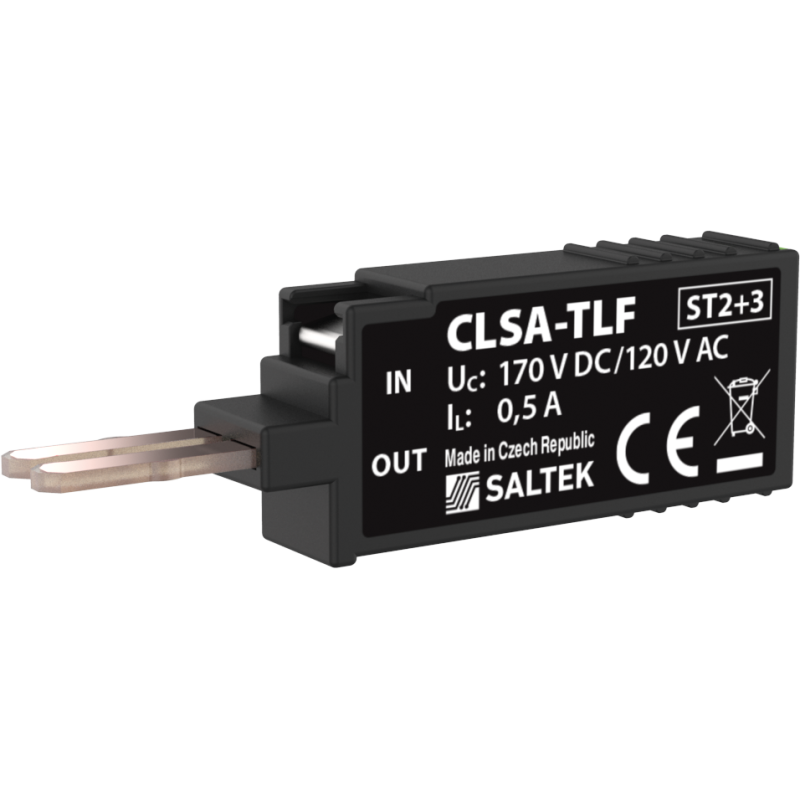

Las fotos son solo para fines informativos. Ver especificaciones de producto
please use latin characters
| Parameter name | Parameter value | |
|---|---|---|
| Type of SPD | C2,C3 | |
| Location of SPD | ST 2+3 | |
| Mounting | LSA disconnection rail | |
| Maximum operating voltage | Uc | 120.00 V AC |
| Maximum operating voltage | Uc | 170.00 V DC |
| Nominal load current | IL | 0.500 A |
| Serial resistance per core | R | 1.60 Ω |
| C2 nominal discharge current (8/20 µs) per core | In | 5.00 kA |
| C2 total discharge current (8/20 µs) cores-PE | ITotal | 10.00 kA |
| C2 voltage protection level mode core-PE at In | Up | 400 V |
| C2 voltage protection level mode core-core at In | Up | 310 V |
| C3 voltage protection level mode core-PE at 1 kV/µs | Up | 350 V |
| C3 voltage protection level mode core-core at 1 kV/µs | Up | 230 V |
| Response time core-core | ta | 1 ns |
| Response time core-PE | ta | 100 ns |
| Connection (input - output) | LSA disconnection rail | |
| Degree of protection | IP 20 | |
| Range of ambient temperatures (min/max) | -40 / 70 °C | |
| According to standard | EN 61643-21+A1,A2:2013, IEC 61643-21+A1,A2:2012 | |
| ETIM Class | EC001625 | |
| Accessories | grounding rail | |
| Customs tariff number | 85363010 | |
| EAN | 8595090551737 |
