Fabricante: SALTEK

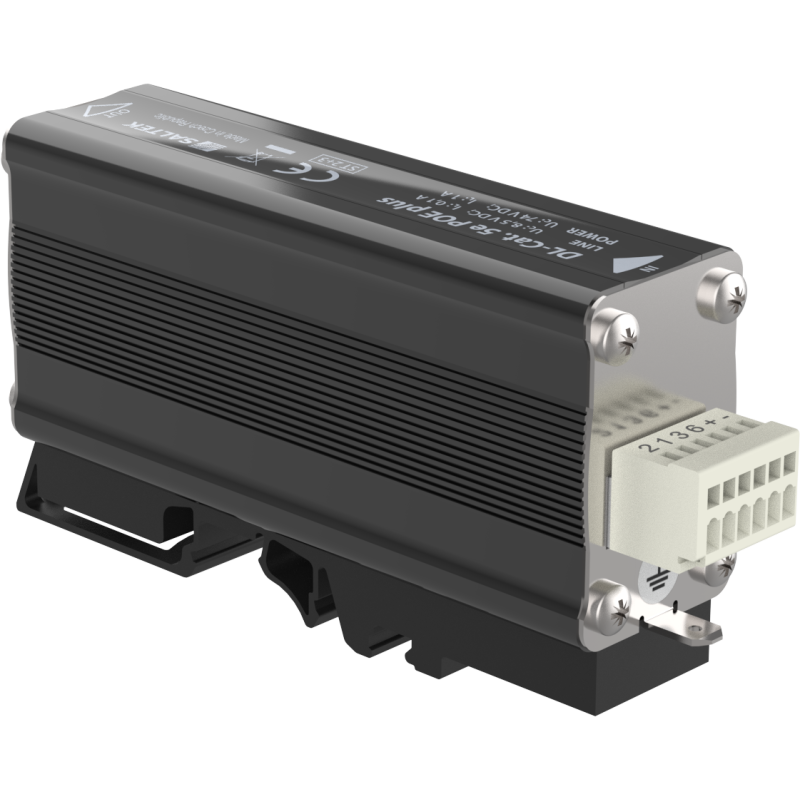

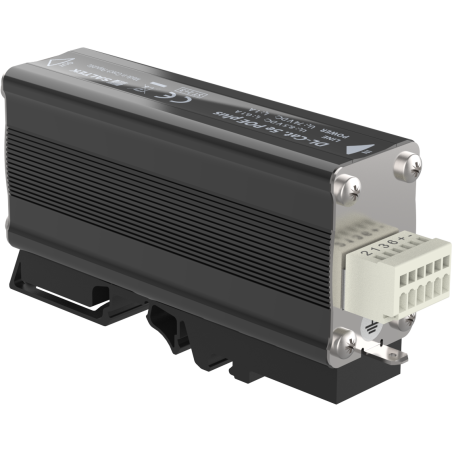

DL-Cat.5e POE plus - Protector contra sobretensiones (SPD)

  • DL-Cat.5e POE plus
  • Grado de protección IP 20
  • Tipo de SPD C2,C3
  • Tensión máxima de funcionamiento 6.00 V AC
Parameter name Parameter value
Type of SPD C2,C3
Location of SPD ST 2+3
Mounting DIN rail 35 mm
Maximum operating voltage Uc 6.00 V AC
Maximum operating voltage Uc 8.50 V DC
Maximum operating voltage POE Uc 40.00 V AC
Maximum operating voltage POE Uc 74.00 V DC
Nominal load current per core at 25 °C IL 0.1 A
C2 nominal discharge current (8/20 µs) per core In 1.50 kA
C2 voltage protection level mode (POE) at In Up 320.00 V
C2 voltage protection level mode core-PE at In Up 490 V
C2 voltage protection level mode core-core at In Up 180 V
C3 voltage protection level mode core-PE at 1 kV/µs Up 560 V
C3 voltage protection level mode core-core at 1 kV/µs Up 60 V
Connection (input - output) screwless terminals/RJ 45
Degree of protection IP 20
Range of ambient temperatures (min/max) -40 / 80 °C
According to standard EN 61643-21+A1,A2:2013, IEC 61643-21+A1,A2:2012
ETIM Class EC001473
Customs tariff number 85363010
EAN 8595090538066
