Fabricante: SALTEK

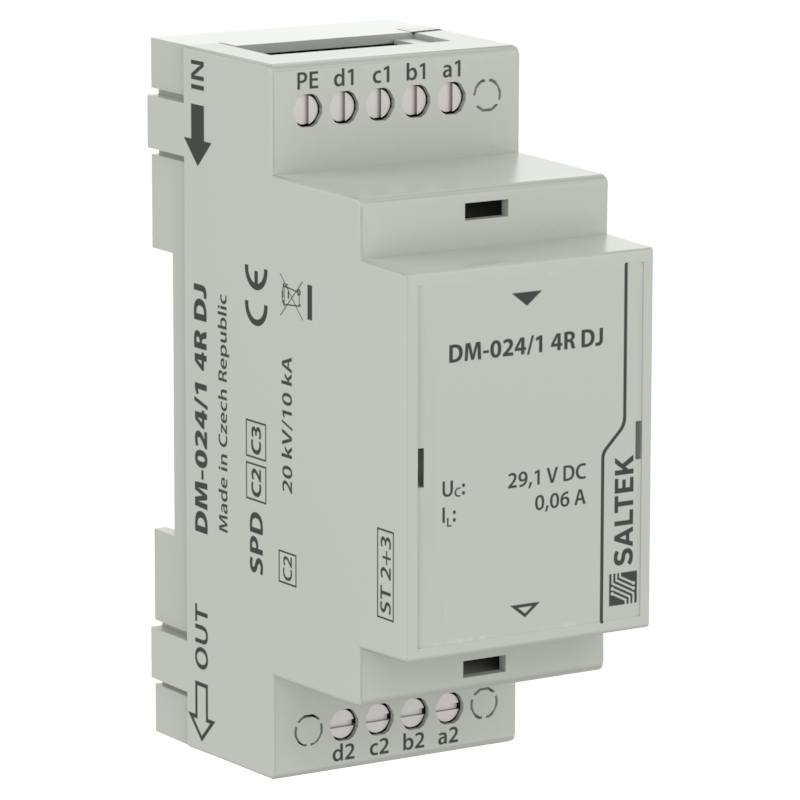

DM-024/1 4R DJ - Protector contra sobretensiones (SPD)

  • DM-024/1 4R DJ
  • Voltaje nominal 24 V DC
  • Grado de protección IP 20
  • Tipo de SPD C2,C3
  • Tensión máxima de funcionamiento 20.60 V AC
Parameter name Parameter value
Type of SPD C2,C3
Location of SPD ST 2+3
Mounting DIN rail 35 mm
Nominal voltage Un 24 V DC
Maximum operating voltage Uc 20.60 V AC
Maximum operating voltage Uc 29.10 V DC
Nominal load current IL 0.060 A
Treshold frequency core-core f 3.40 MHz
Serial resistance per core R 6.80 Ω
C2 nominal discharge current (8/20 µs) per core In 10.00 kA
C2 voltage protection level mode core-PE at In Up 350 V
C2 voltage protection level mode core-core at In Up 50 V
C3 voltage protection level mode core-PE at 1 kV/µs Up 650 V
C3 voltage protection level mode core-core at 1 kV/µs Up 40 V
Response time core-core ta 1 ns
Response time core-PE ta 100 ns
Connection (input - output) terminals-terminals
Cross-section of connected conductors solid (max) 4.00 mm2
Cross-section of connected conductors stranded (max) 2.50 mm2
Degree of protection IP 20
Range of ambient temperatures (min/max) -40 / 80 °C
According to standard EN 61643-21+A1,A2:2013, IEC 61643-21+A1,A2:2012
ETIM Class EC001625
Customs tariff number 85363010
EAN 8595090513575
