Fabricante: SALTEK

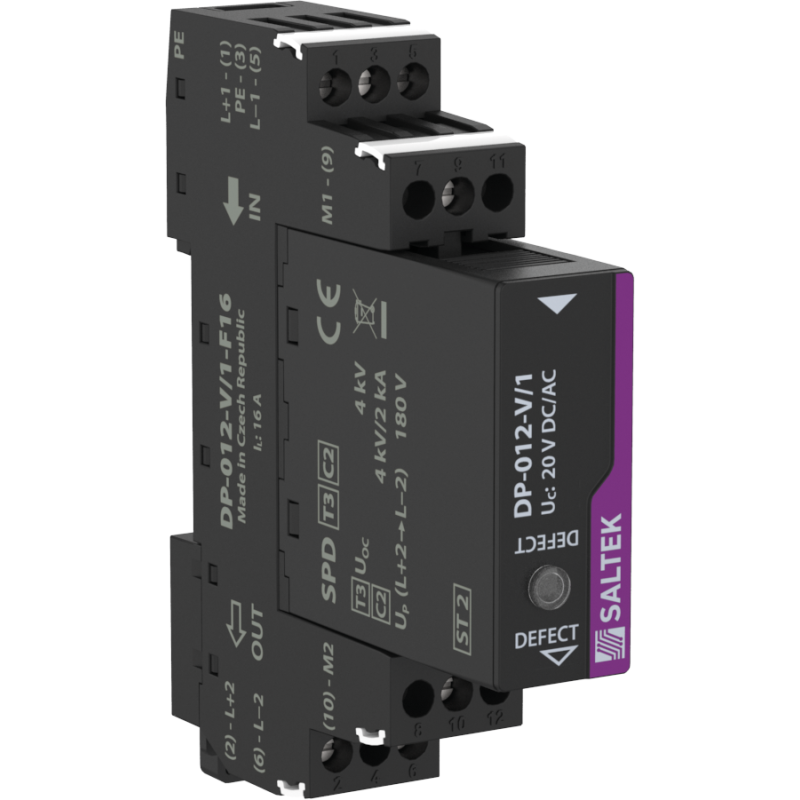

DP-012-V/1-F16 - Protector contra sobretensiones (SPD)

  • DP-012-V/1-F16
  • Voltaje nominal 12 V AC
  • Grado de protección IP 20
  • Tipo de SPD T3, C2
  • Tensión máxima de funcionamiento 20.00 V AC
Parameter name Parameter value
Type of SPD T3, C2
Location of SPD ST 2
Mounting DIN rail 35 mm
Nominal voltage Un 12 V AC
Maximum operating voltage Uc 20.00 V AC
Maximum operating voltage Uc 20.00 V DC
Nominal load current IL 16.000 A
Maximum overcurrent protection 16 A gL/gG or B 16 A
C2 nominal discharge current (8/20 µs) per core In 2.00 kA
Test voltage L+ - L- 4.0 kV
Test voltage L+(L-)-PE 4.0 kV
Test voltage M-PE 4.0 kV
voltage protection level L+ - L- 0.18 kV
voltage protection level L+(L-)-PE 0.75 kV
voltage protection level M-PE 0.75 kV
C2 voltage protection level mode core-PE at In 750.00 V
C2 voltage protection level mode core-PE at In Up 750 V
C2 voltage protection level mode core-core at In Up 180 V
Response time L+ - L- 25 ns
Response time L+(L-)-PE 100 ns
Response time M-PE 100 ns
Connection (input - output) terminals-terminals
Cross-section of connected conductors solid (min) 0.14 mm2
Cross-section of connected conductors solid (max) 4.00 mm2
Cross-section of connected conductors stranded (min) 0.14 mm2
Cross-section of connected conductors stranded (max) 2.50 mm2
Fault indication red indicator
Degree of protection IP 20
Range of ambient temperatures (min/max) -40 / 70 °C
Humidity 5 - 95 %
According to standard EN 61643-21+A1,A2:2013, IEC 61643-21+A1,A2:2012, EN 61643-11:2012, IEC 61643-11:2011
ETIM Class EC000942
Plug module DP-012-V/1-0
Customs tariff number 85363030
EAN 8595090556640
