Fabricante: SALTEK

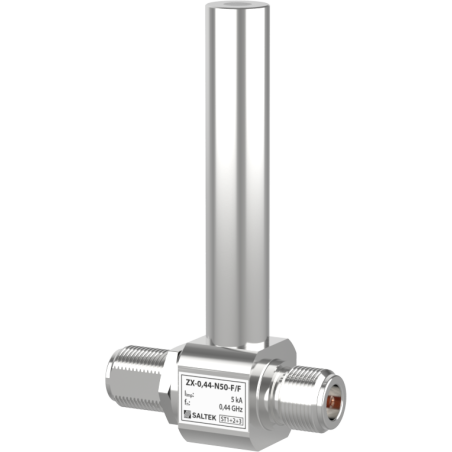

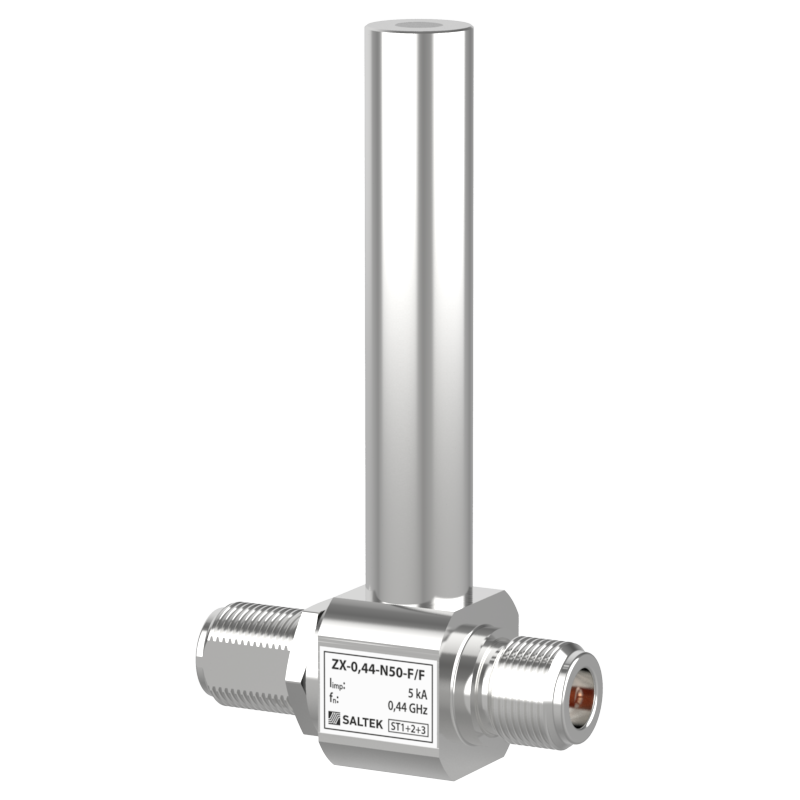

ZX-0,44-N50-F/F - Protector contra sobretensiones (SPD)

  • ZX-0,44-N50-F/F
  • Grado de protección IP 20
  • Tipo de SPD D1,C2,C3
Parameter name Parameter value
Type of SPD D1,C2,C3
Location of SPD ST 1+2+3
Frequency range f 390,00 - 490,00 MHz
Impedance Z 50 Ω
Power (CW) P 2 000.00 W
Insertion loss typ. (max.) A 0,1 (0,2) dB
VSWR typ. (max.) VSWR 1,1 (1,2)
D1 impulse discharge current (10/350 µs) core-PE Iimp 5.00 kA
C2 nominal discharge current (8/20 µs) core-PE In 20.00 kA
Dynamic spark-over voltage at 1kV/µs Udyn 0.25 V
Connection (input - output) N 50
Degree of protection IP 20
Range of ambient temperatures (min/max) -40 / 80 °C
According to standard EN 61643-21+A1,A2:2013, IEC 61643-21+A1,A2:2012
ETIM Class EC001466
Customs tariff number 85363030
EAN 8595090562078
