Transformador de corriente SVA100 M & P
  • Transformador de corriente SVA100 M & P

Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

Fabricante: ELEQ

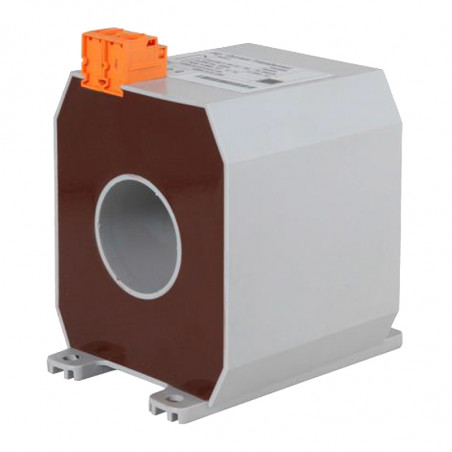

Transformador de corriente SVA100 M & P

The SVA100 is specially designed for application inmedium voltage installations as RMU’s. This cast measuring transformer is cost effective and very reliable. Multi-core and multi ratio types are available in measuring and protection classes


Application Indoor use
Class of insulation A
Frequency 50-60Hz
Primary conductor Cable max. Ø45mm
Material PU [&] PA 6,6
Sec. wire diameter 6 mm2/4mm2
Standard IEC 60044-1



Article number Ratio Class Burden
4SV999 50/5A 0,5S 3VA
4SV903n 100/5A 0,2S-0,5S 2,5-5VA
4SV999 150/5A 0,2S 2,5VA
4SV905n 200/5A 0,2S-0,5S 2,5-5VA
4SV999 300/5A 0,2S 2,5VA
4SV999 400/5A 0,2S 2,5VA
4SV999 500/5A 0,2S 2,5VA
4SV999 600/5A 0,2S 2,5VA
4SV999 50/5A 0,5-1 2-4VA
4SV999 100/5A 0,5-1 3-5VA
4SV999 150/5A 0,5-1 3-5VA
4SV999 200/5A 0,5-1 3-5VA
4SV999 300/5A 0,5-1 3-5VA
4SV999 400/5A 0,5-1 3-5VA
4SV999 500/5A 0,5-1 3-5VA
4SV999 600/5A 0,5-1 3-5VA
4SV999 50/1A 0,5-1 2-4VA
4SV933 100/1A 0,5-1 3-5VA
4SV999 150/1A 0,5-1 3-5VA
4SV935 200/1A 0,5-1 3-5VA
4SV999 300/1A 0,5-1 3-5VA
4SV937 400/1A 0,5-1 3-5VA
4SV999 500/1A 0,5-1 3-5VA
4SV939 600/1A 0,5-1 3-5VA
4SV906n 300/5A 0,5S 10VA
4SV910n 400-600/5A 0,5S 10VA

Article number Ratio Class Burden
4SV999 50/5A 5P10 2,5VA
4SV999 100/5A 5P10 2,5VA
4SV999 150/5A 5P10 2,5VA
4SV999 200/5A 5P10 2,5VA
4SV999 300/5A 5P10 2,5VA
4SV999 400/5A 5P10 2,5VA
4SV999 500/5A 5P10 2,5VA
4SV999 600/5A 5P10 2,5VA
4SV999 50/1A 5P10 2,5VA
4SV999 100/1A 5P10 2,5VA
4SV974 150/1A 5P10 4,0VA
4SV999 200/1A 5P10 2,5VA
4SV999 300/1A 5P10 2,5VA
4SV999 400/1A 5P10 2,5VA
4SV999 500/1A 5P10 2,5VA
4SV999 600/1A 5P10 2,5VA
4SV981 100-200/1A 5P10 4-7VA
4SV982 200-400/1A 5P10 4-7VA
4SV983 400-600/1A 5P20 4-7VA
4SV984 300-600/1A 5P10 4-7VA
4SV989 50-100-200/1A 10P10 1,5-3-6VA

Dimensions
