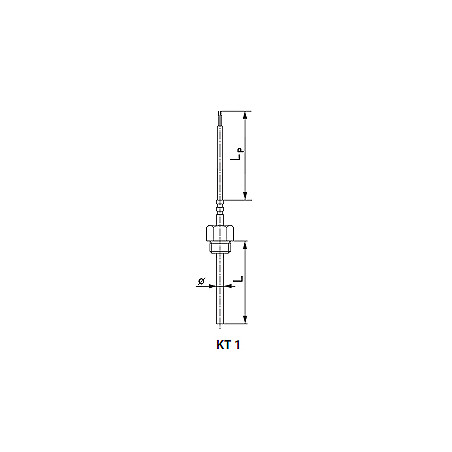

Sensor termoeléctrico o de temperatura resistiva. Tipo: KT1
  • Sensor termoeléctrico o de temperatura resistiva. Tipo: KT1

Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

Sensor termoeléctrico o de temperatura resistiva. Tipo: KT1

Thermo-element type:

Pt100 Pt500 Pt100 Ni100 Ni1000 K J T U
Sensor external diameter
1,5 2 3 4,5 6 9 10 12 14 15 other for client request
Sensor length and diameter
for client request
Thread type
M8x1 M10x1 M12x1 M14x1,5other for client request

Application:
Sensor is used in technology processes temperature measurement.

For resistant sensors - 2,3,4 cables execution. For thermo electric electric sensors immersion element in coat execution or other. Sensor cover material and wire type according to client request.

Order method
Type Type Connection Class Thread Sensor external diameter Ø [mm] Length  L/Lp [mm] p Protective pipe material
KT 1

Pt100
Pt500
Pt1000
Ni100
K
J
T
U

2 - 2 cable.
3 - 3 cable.
4 - 4 cable.

1
2
A
B

 M8x1
M10x1
M12x1 M14x1,5

3
4,5
6
8

 ..../.... mm Metal 1.4301 1.4541 1.4841 1.4571 Inconel 600
