Snaptec - Carcasa de plástico con ABS IP66

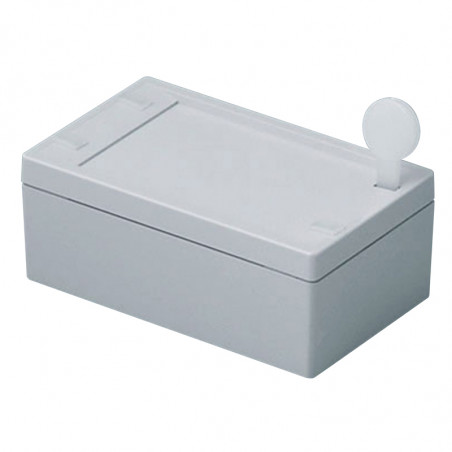

Plastic casing



 SNAPTEC casing  for wall assembly



Construction:

2 part casing,4 plastic clamps allows for good pressure on gasket which allow to obtain IP 65.



Material:                                     ABS (UL 94 HB)

Colour:                                       light grey - RAL 7035,

Delivery range:                       1 upper part with gasket,

                                                  1 bottom part, cover for clamping holes











Dimensions mm









Producer number

 length

width

height

Catalogue number.





SNAPTEC













C 30 10 101

100

100

80

A-O-X-014531





C 30 06 101

60

100

40

A-O-X-014530
