Fabricante: KRADEX

Carcasas de dos piezas. Serie colorida con

Material: PS/ ABS
Degree of protection: IP52/53

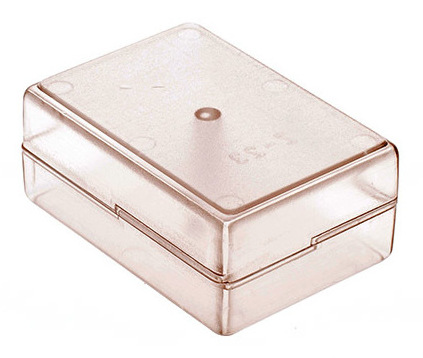

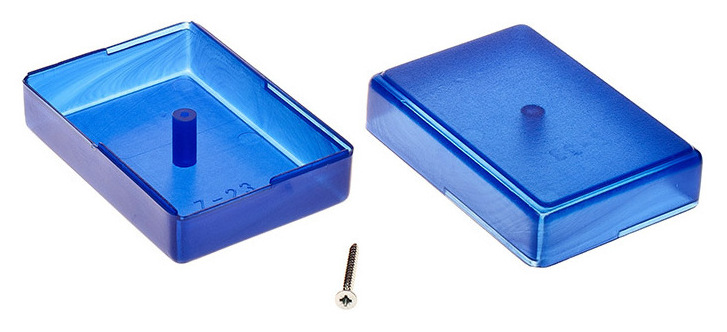

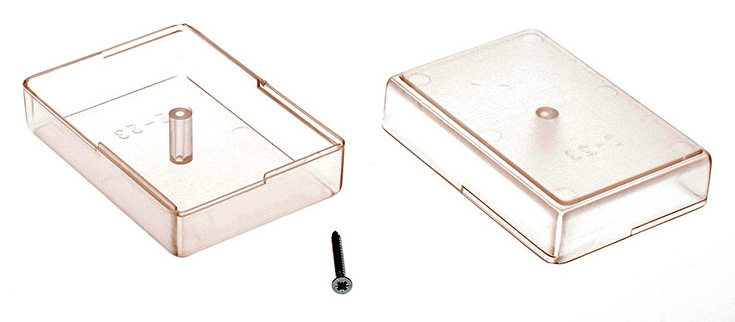

Enclosures are available as standard in two colors: light gray and black. In the color version in semi-transparent (red and blue) or transparent option. In this category it is also possible to buy enclosures with wall mounting (each of them has handles or ears that allow it to be attached to a flat surface). Table: stays Pictures: in the order attached (if you succeed the first two above the table, the other two below the table).





Product Code Type Option Dimensions
Color
Accessories Protection level Property class
[mm]

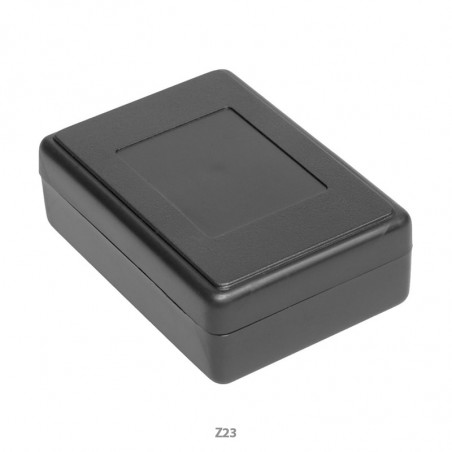

Z23

Full with lug (U)
Full
Without gasket 84.0x59.0x30.0 Lightgray (J)
Black
Red (cz)
Blue (n)
Transparent (p)
Screw 3/20: 1.0 pcs  IP53 IK09

Z23A

Full with lug (U)
Full
Without gasket 84.0x59.0x22.0 Lightgray (J)
Black
Red (cz)
Blue (n)
Transparent (p)
Screw 3/20: 1.0 pcs IP53  IK09

Z23B

Full Without gasket 84.0x59.0x38.0 Lightgray (J)
Black
Red (cz)
Blue (n)
Transparent (p)
Screw 3/30: 1.0 pcs  IP53 IK09

Z24A

Full with lug (U)
Full
Without gasket 66.0x47.0x24.0 Lightgray (J)
Black
Red (cz)
Blue (n)
Transparent (p)
Screw 3/20: 2.0 pcs IP53  IK09

Z43

Full

Without gasket 46.0x31.0x16.0 Lightgray (J)
Black
Red (cz)
Blue (n)
  IP53  IK09

Z47

Full with lug (U)
Full
Without gasket 50.2x40.4x20.6 Lightgray (J)
Black
Red (cz)
  IP54  IK09

Z63

Full Without gasket 26.0x17.0x15.0 Black
Red (cz)
  IP54  IK09

Z75

Full Without gasket 95.0x45.0x23.0 Lightgray (J)
Black
Red (cz)
Blue (n)
Screw 3/13: 4.0 pcs  IP54  IK09

Z76

Full Without gasket 109.0x59.5x28.0 Lightgray (J)
Black
Red (cz)
Blue (n)
Screw 3/16: 4.0 pcs  IP54 IK09

Z77

Full Without gasket 124.0x71.5x38.0 Lightgray (J)
Black
Red (cz)
Blue (n)
Screw 3/16: 4.0 pcs IP54  IK09

Z78

Full Without gasket 154.0x84.5x42.5 Lightgray (J)
Black
Red (cz)
Blue (n)
Screw 3/30: 4.0 pcs IP54  IK09

Z111

Full Hermetic (with gasket) (H)
Hermetic with brass bushing (H TM)
Without gasket
With brass bushing ( TM)
82.0x80.0x55.0 Lightgray (J)
Transparent (p)
Lightgray, transparent lid (Jp)
Screw 3.5/25: 4.0 pcs IP65 IK09

Z116

Full Hermetic (with gasket) (H)
Hermetic with brass bushing (H TM)
Without gasket
51.0x48.9x36.2 Lightgray (J)
Transparent (p)
Lightgray, transparent lid (Jp)
Screw 3.5/20: 2.0 pcs IP65 IK09

Z117

Full Hermetic (with gasket) (H)
Hermetic with brass bushing (H TM)
Without gasket
63.2x57.1x36.7 Lightgray (J)
Transparent (p)
Lightgray, transparent lid (Jp)
Screw 3.5/20: 4.0 pcs IP65 IK09
