Fabricant: DetasUltra

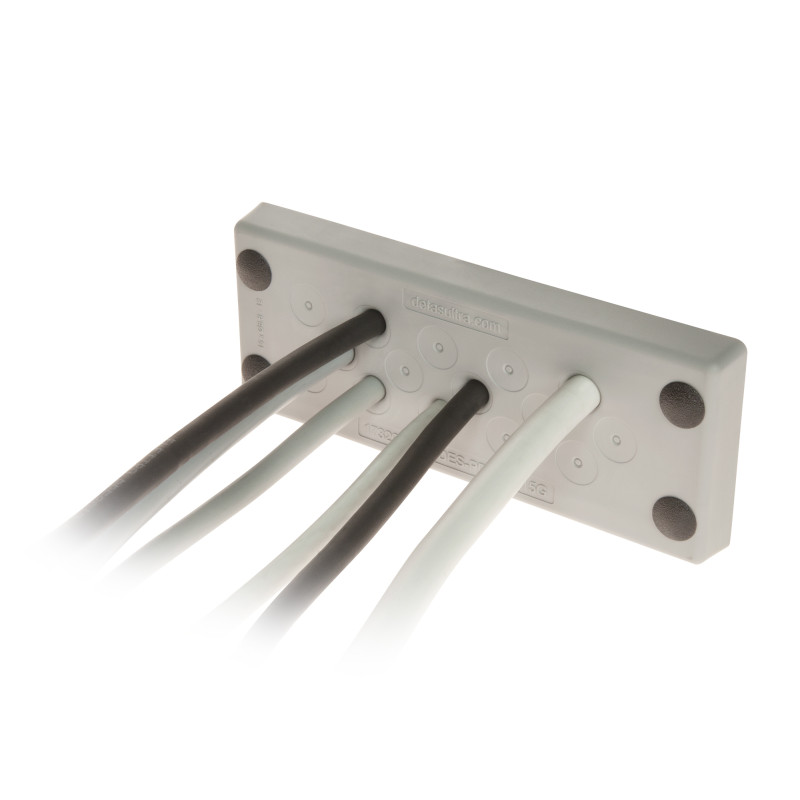

DES PDM 24/124G FT - Plaques d'entrée de câbles

  • 1732213421
  • Dimensions 148,6 x 59,6
  • Type de produit Przepusty kablowe

DES PDM 24 FT cable glands are an economical and reliable alternative to standard industrial cable glands.

  • Fixed from inside with threaded inserts for M4 screws
  • Front end caps to prevent dirt accumulation
  • For large number cables without connectors
  • High strain relief thanks to the double membrane
  • Cost efficient solution
  • Material: TPE + PA
  • Flammability: UL94-V0, self-extinguishing
  • Temperature: -40°C... +105°C (static)
  • Properties:halogen-free, silicone-free
Model Code Dimensions [mm] Cut-out Dimensions [mm] No. cables - Ø cables [mm]
DES PDM 24/3G FT 1732212403 112 x 36 148,6 x 59,6 3 - 18 / 26
DES PDM 24/12G FT 1732212412 112 x 36 148,6 x 59,6 12 - 9 / 16
DES PDM 24/14G FT 1732212414 112 x 36 148,6 x 59,6 10 - 2,8 / 6,5
4 - 14,5 / 22
DES PDM 24/15G FT 1732212415 112 x 36 148,6 x 59,6 15 - 6,8 / 12
DES PDM 24/16G FT 1732212416 112 x 36 148,6 x 59,6 8 - 2,8 / 6,5
4 - 4,4 / 9,7
2 - 8,6 / 16,2
2 - 14,5 / 22
DES PDM 24/17G FT 1732212417 112 x 36 148,6 x 59,6 6 - 2,8 / 6,5
6 - 4,6 / 10,2
5 - 8,6 / 16,2
DES PDM 24/25G FT 1732212425 112 x 36 148,6 x 59,6 12 - 2,8 / 6,5
7 - 4,4 / 9,7
6 - 6,8 / 12
DES PDM 24/26G FT 1732212426 112 x 36 148,6 x 59,6 26 - 4,6 / 10
DES PDM 24/32G FT 1732212432 112 x 36 148,6 x 59,6 21 - 2,8 / 6,5
8 - 4,6 / 10,2
3 - 6,8 / 12
DES PDM 24/42G FT 1732212442 112 x 36 148,6 x 59,6 42 - 2,8 / 6,5
DES PDM 24/15B FT 1732213415 112 x 36 148,6 x 59,6 15 - 6,8 / 12
DES PDM 24/124G FT 1732213421 112 x 36 148,6 x 59,6 120 - 1,75 / 4,7
4 - 2,3 / 6
