Fabricant: DetasUltra

SPG 2R1G - Joints passe-câbles

  • 1731022140
  • Type de produit Modules détanchéité
  • 18 - 20

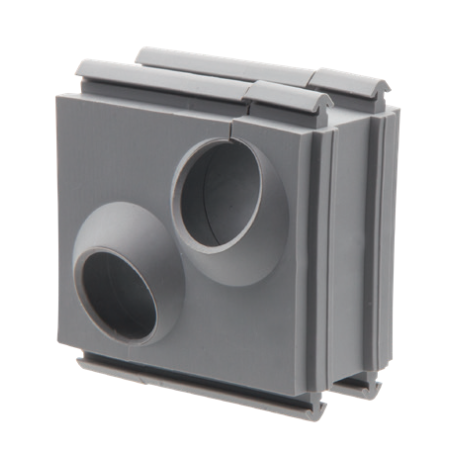

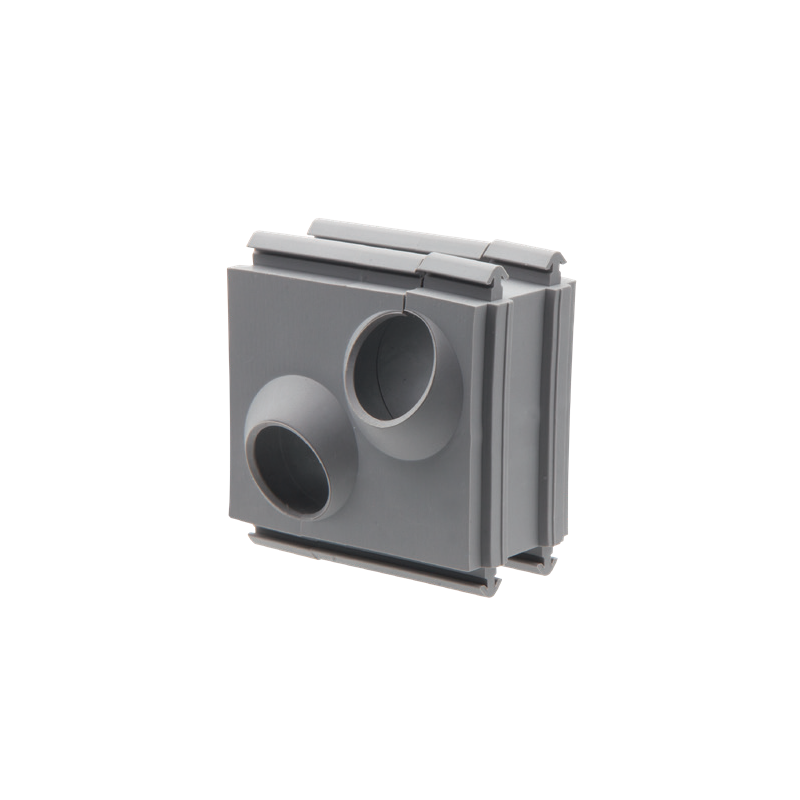

The openable grommets with extended range of the SPG 2R series allow the insertion of cables with or without connectors. They are available for diameters from 18 to 20 mm.

  • Grommets with extended range for headed cables with diameters from 18 to 20 mm
  • IP66 protection
  • Colours grey and black
  • UL94-V0 for both colours
  • Material: TPE, halogen- and silicone-free
  • Flammability: self-extinguishing according to UL94-V0 (gray or black)
  • Temperature: -40°C...+110°C (static)
Model Code Cable Ø max. [mm]
SPG 2R1G 1731022140 18 - 20
SPG 2R1B 1731022240 18 - 20

Envoyez une demande

Êtes-vous intéressé par ce produit? Avez-vous besoin d'informations supplémentaires ou d'une tarification individuelle?

Nous contacter
DEMANDEZ LE PRODUIT close
Merci d'avoir envoyé votre message. Nous vous répondrons dans les plus brefs délais.
DEMANDEZ LE PRODUIT close
Feuilleter

Ajouter à la liste de souhaits

Vous devez être connecté

  • Type de produit Modules détanchéité
  • 18 - 20

The openable grommets with extended range of the SPG 2R series allow the insertion of cables with or without connectors. They are available for diameters from 18 to 20 mm.

  • Grommets with extended range for headed cables with diameters from 18 to 20 mm
  • IP66 protection
  • Colours grey and black
  • UL94-V0 for both colours
  • Material: TPE, halogen- and silicone-free
  • Flammability: self-extinguishing according to UL94-V0 (gray or black)
  • Temperature: -40°C...+110°C (static)
Model Code Cable Ø max. [mm]
SPG 2R1G 1731022140 18 - 20
SPG 2R1B 1731022240 18 - 20
