Diodes de redresseur
Diodes de redresseur

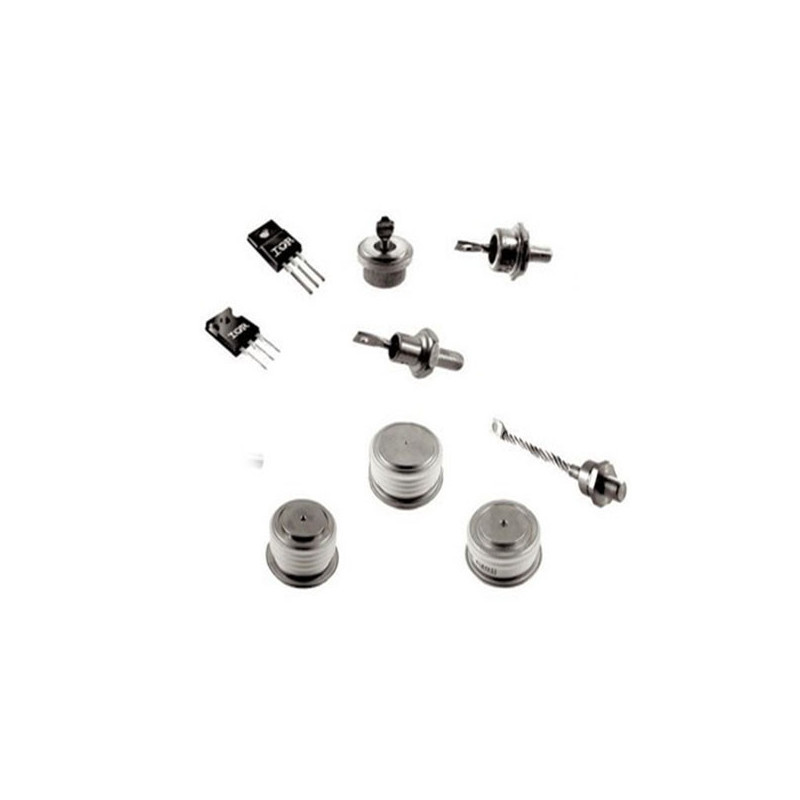

Les photos sont à titre informatif uniquement. Voir les spécifications du produit

please use latin characters

Fabricant: Vishay

Diodes redresseuses

Diodes en boîtier plastique

Type de diodeIF(AV)/Tc
[A/°c]		URRM
[V]		UFM
[V]		Boîtier
10ETS1610/10516001,1TO-220AC
20ETS1220/10512001,1
60EPS1260/11812001,1TO-247AC

Diodes en boîtier à pression et à vis

Type de diodeIF(AV)/Tc
[A/°c]		URRM
[V]		UFM
[V]		Boîtier
12F(R)12012/14412001,26DO-203AA(DO-4)
16F(R)12016/14012001,23
25F(R)12025/12012000,9
40HF(R)16040/11016001,3DO-203AB(DO-5)
70HF(R)12070/14012001,35
70HF(R)16070/11016001,35

Dimensions [mm] DO-4Dimensions [mm] DO-5
DIODY PROSTOWNICZE - IR wymiar DO-4DIODY PROSTOWNICZE - IR wymair DO-5

Diodes in screw case

Type of diodeIF(AV)/Tc
[A°c]		URRM
[V]		IFSM
[A]		I2t
[A2s]		Rthjc
[°c/w]		Rthcs
[°c/w]		Moment
de serrage
[Nm]		Boîtier
130HF(R)...130/125400-12002000200000,30,0810DO-205AC(DO-30)
fig.1
SD150N(R)...150/125400-25003600650000,230,0814
200HF(R)...200/125400-12004400970000,170,0810
SD200N(R)...200/110400-240047001100000,230,0814
70/300U(R)..D250/1451200-160065502140000,180,0828DO-205AB(DO-9)
rys.3
70U(R)..250/150100-100065502140000,180,0828
300U(R)..300/130100-100065502140000,180,0828
300HF(R)...300/125400-120050001250000,120,0522
301U(R)..330/120800-200082503400000,140,0828
 300/12025006050183000
SD300N(R)..380/702500-32060501830000,110,0427
SD400N(R)..400/120400-240082503400000,110,0427
SD500N(R)..475/553000-450075002810000,100,0450B-8
rys.2
SD600N(R)..600/92400-2000130008450000,100,0450
 600/542500-320010500551000

Diodes en boîtier plastique

TypeIF(AV)/Tc
[A°c]		URRM
[V]		IFSM
[A]		I2t
[A2s]		Rthjs
[°c/w]		Moment
[kN]		Obudowa
SD300C..C650/55400-200060501830000,0734,9DO-200AA(A-Puk)rys.4
540/55 2500-3200
SD400C..C800/55400-240082503400000,0734,9
SD1100C..C1400/55400-2000130008460000,0389,8B-43
rys.5
 1100/552500-320010500551000
SD700C..L700/553000-450075002810000,059,8DO-200AB(B-Puk)
rys.6
SD800C..L1180/552400-3600136009250000,03114,7
 1065/554000-450012200745000
SD1100C..L1170/55400-2000130008460000,059,8
 910/552500-320010500551000
SD1500C..L1600/55400-30001660013860000,03114,7
SD2000C..L2100/55400-10002390028570000,03114,7
SD1700C..K2080/552400-36002400028900000,0222,25DO-200AC(K-Puk)
rys.7
 1875/554000-4500200002000000
SD2500C..K3000/551200-25003100048100000,0222,25
SD3000C..K3800/55400-10003580064100000,0222,25
SD4000C..R4450/553000-400057300164300000,0139,2B-44(R-Puk)
rys.8
SD5000C..R5570/552000-30006780023000000
SD6000C..R6690/551200-24007640029200000
SD8500C..R9570/55200-6009550045620000

Figure 1Figure 2Figure 3Figure 4
DO-205AC (DO-30)B8DO-205AB (DO-9)DO-200AA (A-Puk)
DIODY PROSTOWNICZE - IR - obudowa DO-205AC (DO-30)DIODY PROSTOWNICZE - IR - obudowa B8DIODY PROSTOWNICZE - IR - obudowa DO-205AC (DO-30) dO-205AB (DO-9)DIODY PROSTOWNICZE - IR - obudowa DO-200AA(A-Puk)
Figure 5Figure 6Figure 7Figure 8
B-43 (E-Puk)DO-200AB (B-Puk)DO-200AC (K-Puk)B-44 (R-Puk)
DIODY PROSTOWNICZE - IR - obudowa B-43(E-Puk)DIODY PROSTOWNICZE - IR - obudowa DO-200AB (B-Puk)DIODY PROSTOWNICZE - IR - obudowa DO-200AC (K-Puk)DIODY PROSTOWNICZE - IR - obudowa B-44 (R-Puk)
Moins
