Fabricante: M-SYSTEM

W5ms: convertidor de señal con una entrada resistiva con una doble salida.

  • W5MS

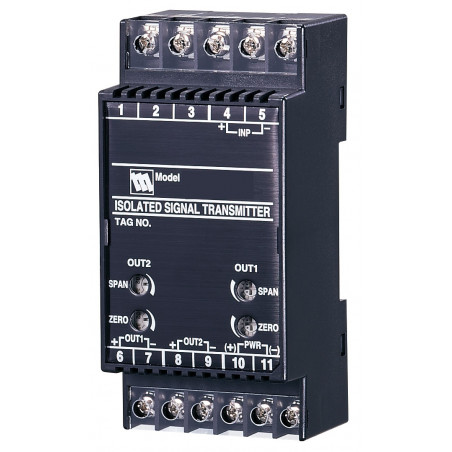

W5MS is a resistive input converter with two outputs.


Features

  • Provides DC isolation signal
  • DIN rail mounting
  • Standard output signal proportional to resistive input
  • AC / DC power
  • Fast response version available
  • 2000V AC isolation

    • Types of inputs: resistive 100Ω - 10 kΩ
    Types of outputs: current or voltage with different ranges
    Possibility of making the range of inputs / outputs on a special order.


    < tr>
    Wire connection M3 screw terminals
    Separation Input / Output / Power
    Dielectric strength DC: 2000V AC
    At AC power: 1500V AC
    Ranges selection Programmable via PC < / td>
    Double Exit Yes
    Power AC / DC
    Working temperature - 5 to + 55 ° C
    Mounting DIN Rail
    Dimensions < / th> 45x41x97mm
