Fabricante: FRER

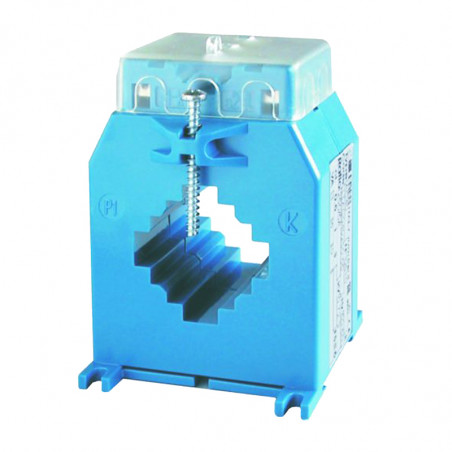

TRANSFORMA DE ACTUAL DE TAC040 PARA Ø32 / RAIN 40X10MM

Technical Data

Thermoplastic material UL94-V0
Operating frequency 50-60Hz
Voltage 0.72kV
Test voltage 3kV * 1’50Hz
Insulation Class E
Protection degree IP 20
Continuous overcurrent 1.2In
Rated short-time thermal current (I th) 60 In
Rated dynamic current (I dyn) 2.5 x I th
Safety factor N<5
max. power dissipation (max range value) <7W
Operating temperature -25 +50o C
Storage temperature -40 +80o C
Manufactured according to

IEC/E N 60044-1,
VDE, BS, UTE
Integrated secondary terminals 6mm2


SECONDARY 5A

Ratio Burdens
[VA]		 Code
cl. 0.5 cl. 1 cl. 3
100/5 A   1.5 4

TAC040100X05
120/5 A   2 4

TAC040120X05
150/5 A 1.5 3 5

TAC040150X05
200/5 A 2 4 6

TAC040200X05
250/5 A 3 6 9

TAC040250X05
300/5 A 5 8 12

TAC040300X05
400/5 A 10 15 20

TAC040400X05
500/5 A 12 20 25

TAC040500X05
600/5 A 15 20 25

TAC040600X05
800/5 A 18 25 30

TAC040800X05
1000/5 A 20 25 30

TAC0401K0X05

SECONDARY 1A

Ratio Burdens
[VA]		 Code
cl. 0.5 cl. 1 cl. 3
100/1 A   1.5 4

TAC040100X01
120/1 A   2 4

TAC040120X01
150/1 A 1.5 3 5

TAC040150X01
200/1 A 2 4 6

TAC040200X01
250/1 A 3 6 9

TAC040250X01
300/1 A 5 8 12

TAC040300X01
400/1 A 10 15 20

TAC040400X01
500/1 A 12 20 25

TAC040500X01
600/1 A 15 20 25

TAC040600X01
800/1 A 18 25 30

TAC040800X01
1000/1 A 20 25 30

TAC0401K0X01



Secondary 5 A

Ratio Code
VA Cl. 0,2 VA Cl. 0,5S
200/5A 1 TAC040200J05 1 TAC040200Y05
250/5A 2 TAC040250J05 2 TAC040250Y05
300/5A 2.5 TAC040300J05 2.5 TAC040300Y05
400/5A 5 TAC040400J05 5 TAC040400Y05
500/5A 8 TAC040500J05 8 TAC040500Y05
600/5A 10 TAC040600J05 10 TAC040600Y05
800/5A 12 TAC040800J05 12 TAC040800Y05
1000/5A 12 TAC0401K0J05 12 TAC0401K0Y05

Secondary 1 A

Ratio Code
VA Cl. 0,2 VA Cl. 0,5S
200/5A 1 TAC040200J01 1 TAC040200Y01
250/5A 2 TAC040250J01 2 TAC040250Y01
300/5A 2.5 TAC040300J01 2.5 TAC040300Y01
400/5A 5 TAC040400J01 5 TAC040400Y01
500/5A 8 TAC040500J01 8 TAC040500Y01
600/5A 10 TAC040600J01 10 TAC040600Y01
800/5A 12 TAC040800J01 12 TAC040800Y01
1000/5A 12 TAC0401K0J01 12 TAC0401K0Y01



Secondary 5 A - Protection

Ratio Code
VA Cl. 5P5
400/5A 1 TAC040400K05
500/5A 1.5 TAC040500K05
600/5A 2 TAC040600K05
800/5A 3 TAC040800K05
1000/5A 3.5 TAC0401K0K05



Secondary 1 A - Protection

Ratio Code
VA Cl. 5P5
400/5A 1 TAC040400K01
500/5A 1.5 TAC040500K01
600/5A 2 TAC040600K01
800/5A 3 TAC040800K01
1000/5A 3.5 TAC0401K0K01
