Fabricante: Acer Voltage

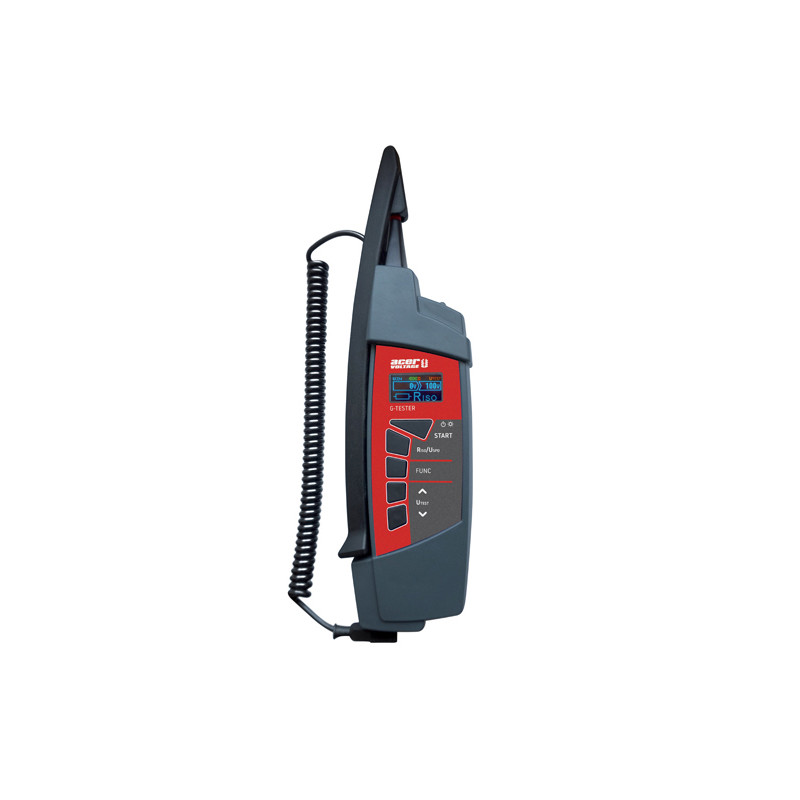

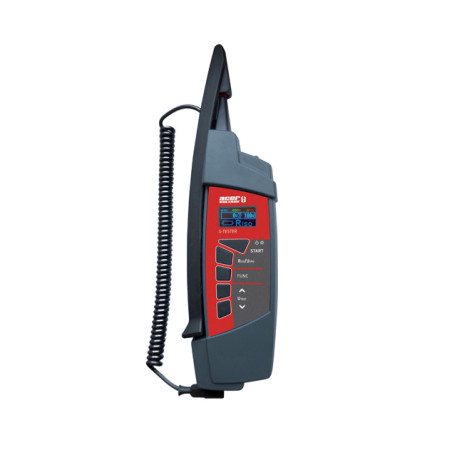

G-Tester - Dispositivo de medición - 99000

  • G-Tester

Un dispositivo de diagnóstico simple y portátil diseñado para verificar rápidamente los componentes de protección contra sobretensiones (SPD) que contienen varistores de óxido metálico o tubos de descarga de gas (GDT).

Technical Data

Insulation resistances
  Measuring range   0,100 MΩ ÷ 1,999 GΩ (U = 25 V ÷ 99 V)
  0,100 MΩ ÷ 3,999 GΩ (U = 100 V ÷ 249 V)
  0,100 MΩ ÷ 9,999 GΩ (U = 250 V ÷ 1000 V)
  Resolution range   0,001 MΩ / 0,01 MΩ / 0,1 MΩ / 0,001 GΩ
  Basic measurement error   ±   (2% z MH + 10 D)* (R < 1 GΩ)
  ± (4% z MH + 15 D)* (R ³ 1 GΩ)

  Operating measurement error		   ± (3% z MH + 20 D)* (R < 1 GΩ)
  ± (5% z MH + 25 D)* (R ³ 1 GΩ)
  Rated measuring current   ≥ 1 mA
  Short circuit current   < 3 mA
  Automatic discharge of measured object   yes
Voltage DC and AC
  Measuring range UIn   0 V ÷ 600 V DC/AC (45 Hz ÷ 65 Hz)
  Resolving range   1 V
 Basic measurement error   ± (2% z MH + 2 D)*
  Operating measurement error   ± (3% z MH + 3 D)*
Surge protection devices
  Measuring range   40 V ÷ 1050 V
  Resolution range   1 V
  Basic measurement error   ± (2% z MH + 2 D)*
  Operating measurement error   ± (3% z MH + 3 D)*
  The measurement principle   increase voltage measurement through the SPD
General
  Power   4 x AAA (LR03) alkaline batteries 1,5 V or NiMH accumulator 1,2 V
  Display   OLED, multicolored graphic
  Protection class   II (double insulation)
  Overvoltage category   CAT III / 300 V or CAT II / 600 V
  Degree of pollution   2
  Protection degree   IP43
  Dimensions   260 x 70 x 40 mm
  Weight   0,36 kg
  Article number   99000

- MH means measured value, while D means digit
