Fabricante: DetasUltra

DES Q CLEAN - Marcos de diseño higiénico divisibles

  • 1731260008
  • Tipo de producto Prensaestopas higiénicos
  • Agujero 40 x 36

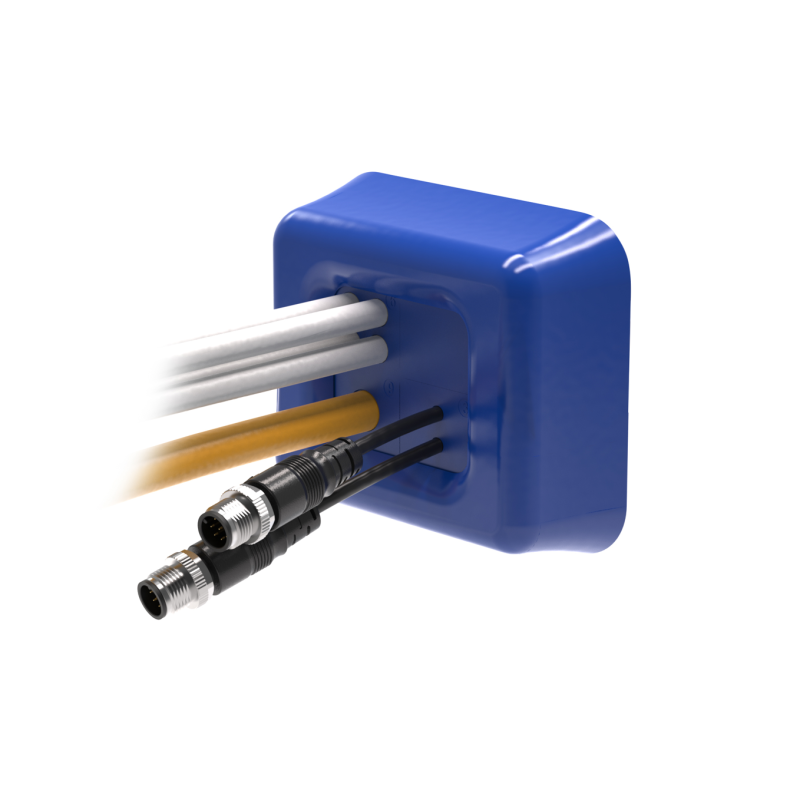

The DES Q CLEAN divisible frame is composed of the well-known DES Q divisible frame and an FDA PC mask, which is secured to the frame by overmolded inserts. Therefore, the system with the grommets installed, it is not just a color difference from traditional solutions, but a device that meets Hygienic design requirements for food machinery.

  • Easily cleanable
  • Frame screws in AISI304 Stainless Steel
  • Strain relief according to EN 62444
  • Without screw holes and sharp corners
  • Fixing with threaded inserts
  • Material: FDA approved PC, halogen and silicone free
  • Flammability: UL94-HB
  • Temperature: -40°C .. +80°C
Model Code Max. opening [mm]
DES Q CLEAN 1731260008 40 x 36
