Fabricante: DetasUltra

SPL 13G - Manguitos

  • 1731053005
  • Tipo de producto Moduły uszczelniające
  • 11,5 - 16

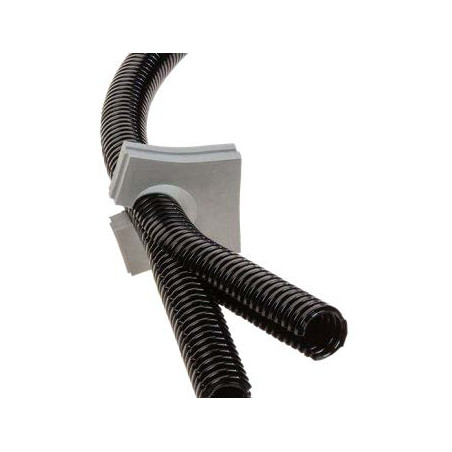

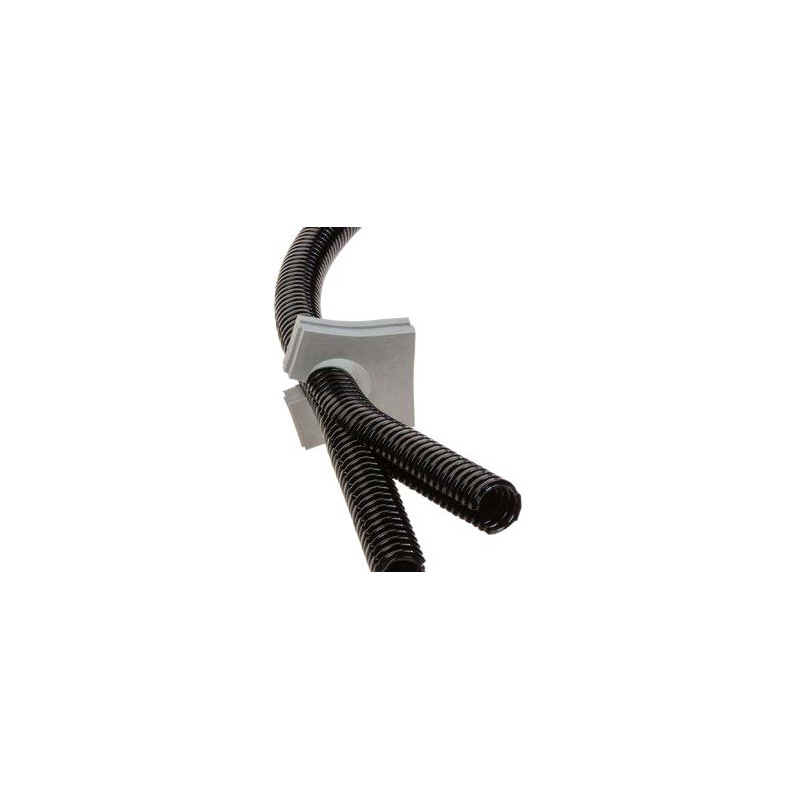

The SPL series grommets allow a cable with diameter from 12 to 31mm to be routed through the DES XX CLICK splittable frames series .

  • Large multiple grommets for cables with diameters from 11,5 to 31 mm.
  • Can be used in CLICK frames
  • Long lasting product and high resistance to industrial oils.
  • Colours grey and black
  • UL94-V0 for both colours
  • IP54
  • Material: TPE
  • Flammability: self-extinguishing according to UL94-V0 (grey or black)
  • Temperature: -40°C... +110°C (static)
  • Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Model Code Cable Ø max. [mm]
SPL 0G 1731053000 -
SPL 0B 1731053001 -
SPL 13G 1731053005 11,5 - 16
SPL 17G 1731053010 16 - 20
SPL 21G 1731053013 20 - 24
SPL 25G 1731053015 24 - 28
SPL 29G 1731053020 28 - 31
SPL 13B 1731053025 11,5 - 16
SPL 17B 1731053030 16 - 20
SPL 21B 1731053033 20 - 24
SPL 25B 1731053035 24 - 28
SPL 29B 1731053040 28 - 31
