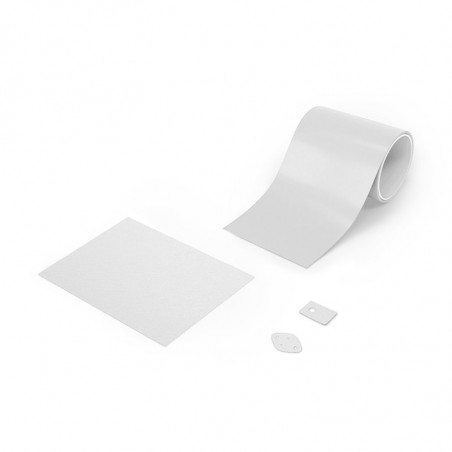

Strips térmicos adhesivos de doble cara Bond-Ply 100
  • Strips térmicos adhesivos de doble cara Bond-Ply 100

Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

Fabricante: BERGQUIST

Strips térmicos adhesivos de doble cara Bond-Ply 100

Features
• High bond strength to a variety of surfaces
• Double-sided, pressure-sensitive adhesive tape
• High performance, thermally conductive acrylic adhesive
• Can be used instead of heat-cure adhesive, screw mounting or clip mounting

Applications
• Mount heat sink onto BGA graphic processor or drive processor
• Mount heat spreader onto power converter PCB or onto motor control PCB

Specifications
Thickness: 0.005/0.008/0.011" (0.127/0.203/0.279mm)
Reinforcement Carrier: Fiberglass
Dielectric Breakdown Voltage (Vac):3000/6000/8500
Thermal Conductivity: 0.8W/m-K
