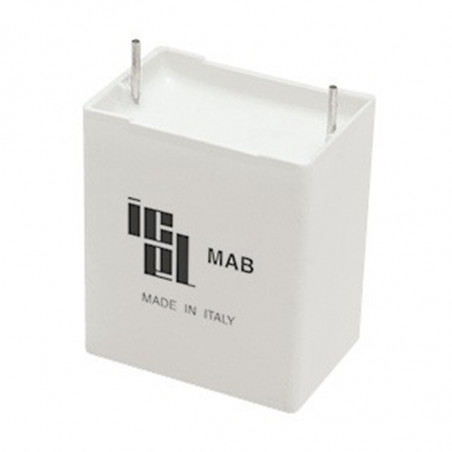

MAB - condensateurs en polypropylène
  • MAB - condensateurs en polypropylène

Les photos sont à titre informatif uniquement. Voir les spécifications du produit

please use latin characters

Fabricant: Icel

MAB - condensateurs en polypropylène

Main Application

  • Motor run capacitor
  • General purpose AC applications
  • Medium-low power switching capacitor for industrial and motor
    speed controls, electronic ballasts and SMPS


Execution and reference standard

  • Extended metallized film
  • Box with radial terminals
  • UL 94 V-1, UL 94 V-0, flame retardant execution
  • IMQ approved series
  • IEC 60068, EN 60252-1 (2011)+ A1 (2013), SEV1029, CSA 22.2 n.190
    and UL810 (construction only), IEC 60335-1, RoHS
MAB Ur Cn (μF) du/dt (V/μs) Nom. size B (mm) x H (mm) x L (mm) Pitch (mm)
370 Vdc (160 Vac) 1 ÷ 40 25 ÷ 50 7x16x26.5 ÷ 35x50x42 22.5 ÷ 37.5
500 Vdc (250 Vac) 0.68 ÷ 27 35 ÷ 60 7x16x26.5 ÷ 35x50x42 22.5 ÷ 37.5
600 Vdc (320 Vac) 0.33 ÷ 18 50 ÷ 90 7x16x26.5 ÷ 35x50x42 22.5 ÷ 37.5
800 Vdc (400 Vac) 0.1 ÷ 10 65 ÷ 120 7x16x26.5 ÷ 35x50x42 22.5 ÷ 37.5
1200 Vdc (500 Vac) 0.1 ÷ 4.3 90 ÷ 175 7x16x26.5 ÷ 35x50x42 22.5 ÷ 37.5



Product card - Download
