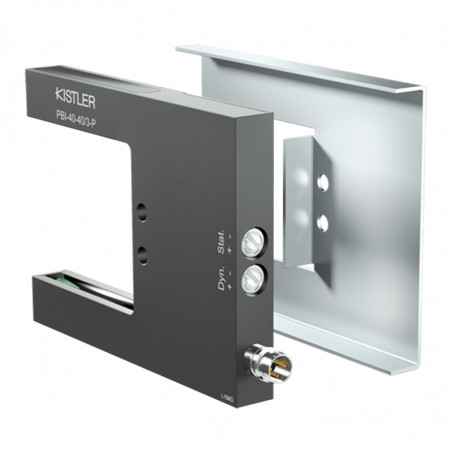

barrières lumineuses à fente (infrarouge) de type PBI PBI-40-40 à 60-75
  • barrières lumineuses à fente (infrarouge) de type PBI PBI-40-40 à 60-75

Les photos sont à titre informatif uniquement. Voir les spécifications du produit

please use latin characters

Fabricant: Vester

barrières lumineuses à fente (infrarouge) de type PBI PBI-40-40 à 60-75

Technical data

Circuit: constant light trigger
Voltage: 12...24V
Current consumption: 50...200mA
Operation: dynamic / static
Output with LED: PNP
Function: bright-dark switch
Output current: 500 mA
Pulse length: 10ms, adjustable (1-100 ms.) 10 ms
Frequency: depending on pulse length, max. 1 kHz
Operating temperature: 0...60°C
EMC: IEC 801.... CE
Type of protection: IP 65
Connection type: 3-pole M8 socket

Accuracy

Ball-Ø (dynamic) 1,0 mm
Ball-Ø (static) 2,0 mm

Dimensions [mm]

WIELOPROMIENIOWE BARIERY ŚWIETLNE Z WBUDOWANYM WZMACNIACZEM wymiary

Catalogue number Light barrier A B B1 Terminal - 3 pole M8 socket8
PBI-40-40/3-P 8344-00000-3002 40 40 35 WIELOPROMIENIOWE BARIERY ŚWIETLNE Z WBUDOWANYM WZMACNIACZEM
PBI-50-75/3-P 8357-00000-3002 50 75 69
PBI-60-75/3-P 8367-00000-3002 60 75 69
