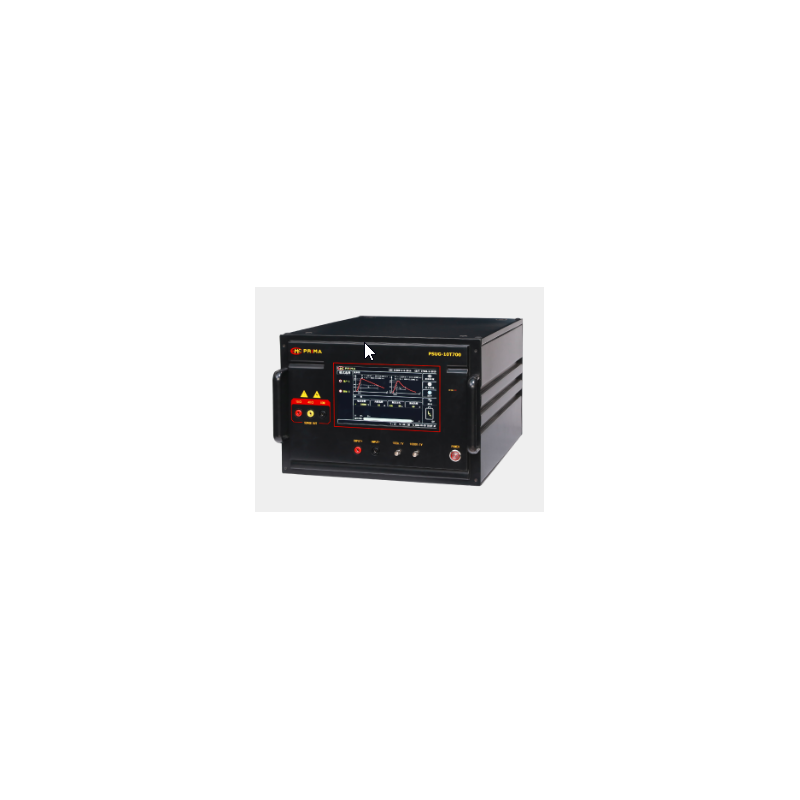

PSUG-10T700 surge simulator

  • PSUG-10T700

PSUG-10T700 has been specifically designed to meet the requirements of electromagnetic interference immunity testing – surge (impulse) (SUG). Used to evaluate the performance of power cables and internal connecting cables in electrical and electronic devices when exposed to high-energy, transient interference caused by switches or natural lightning strikes.

PSUG-10T700 Features:

  • Positive/negative polarity switching capability
  • 10.1-inch color touchscreen
  • Free positive/negative polarity conversion
  • Language switching capability (Chinese/English)
  • Operating modes: standard, boost, custom
  • Built-in RJ45 interface, remote control capability (optional)
  • Connects to an oscilloscope via coaxial line for waveform measurement real

Compliance with standards:

  • IEC/EN60664
  • GB/T17626.5 / IEC61000-4-5
  • ITU K20
  • ANSI C62.41/45
  • GB/T16927.1
  • IEC/EN 61643-1

Parameters:

Parameter Value
Model PSUG-10T700
Open Circuit Voltage 200V ~ 10000V 10%
Rise Time (10/700 µs) 10 µs ±30%
Pulse duration 700µs ±20%
Short circuit current 5A ~ 250A ±10%
Rise time (8/20 µs) 5µs ±20%
Pulse duration (8/20 µs) 320 µs ±20%
Polarity +, -, +/-, -/+
Output impedance 15 Ω, 40 Ω ±10%
Voltage Step 0 ~ 10000V
Surge Interval 0 ~ 9999s
Number of Surge Pulses 1 ~ 9999c
Trigger Mode Manual, external, interval
