Fabricante: EATON Bussmann

Accesorios para los fusibles estándar europeo

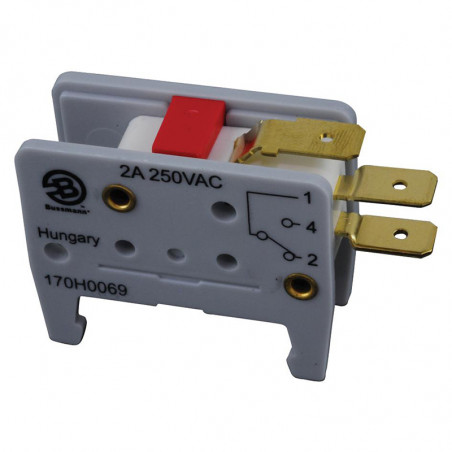

Micro relays for operation sensors


Table. Technical data


Dimensions Din 43 653 Din 43 620 French standard Screw in
Typ T Typ K Typ T Typ K Typ T Typ K Typ T Typ k
000 170H0236   170H0236
170H0238   170H0238
0 170H0235           170H0235
170H0237           170H0237
1* 170H0235 170H0069 170H0235 170H0069 170H0236 170H0069   170H0069
1 170H0235 170H0069     170H0236 170H0069   170H0069
2 170H0235 170H0069 170H0235 170H0069 170H0236 170H0069   170H0069
3 170H0235 170H0069 170H0235 170H0069 170H0236 170H0069   170H0069
4               170H0069
23               170H0069
24               170H0069

Fuses basis

Table. Universal fastening for DIN 43653 standard

Type Max voltage
[V]
Current
[A]
B
[mm]
C
[mm]
Drawing
170H3003 1000 630 80 150 1
170H3004 1000 1250 80 150 2
170H3005 1400 630 110 180 1
170H3006 1400 1250 110 180 2

Drawing 1 - Dimensions [mm]


Table. Fuses fastening 000, 00 sizes

Type Max voltage
[V]
Current
[A]
Size Drawing
170H1007 1000 400 00, 000 3
170H1013 660 200 000, 0000 4
Drawing 2 - Dimensions [mm]



Drawing 3 - Dimensions [mm]
Drawing 4 - Dimensions [mm]

Disconnectors for knife fuses
Type
for power fuses  Din 43620/1
Size NT 00-IN NT 1-IN NT 2-IN NT 3-IN NT 4-IN
00 1 2 3 4a
            1250
Nominal connection current Ie A 160 250 400 630 16001)
            1250
Nominal thermal current in air Ith A 160 250 400 630 1600
Nominal connection voltage Ue V 690
Nominal insulation voltage Ui V 800
Nominal test voltage Uimp KV 8
Nominal short circuit current kA 50
Usage category VDE 0660 T107/EN/IEC 60947-3 Ue =440VAC AC-22 B
Ue =690VAC AC-21 B
Ue=440VAC2) DC-21 B
Mechanical durability cykle 1600 100 600 600 600
Ambient temperature °C od -25°C do 55°C
Protection degree DIN/EN 60529/VDE 0470 T1 IP 3X
            115
Maximal fuse insert power n/n Pv max. 12 23 34 48 140
Fuse insert weight kg 0,5 2 3,25 5,3 14
Type of nominal operation Constant operation

Dimensions [mm] - NT 00-IN

Dimensions [mm] - NT 1-IN, NT 2-IN, NT 3-IN



Dimensions
[mm]
A B C D E F G H I J K L M N O
NT 1-IN 184 245 110 293 216 230 186 68 72 77 33 40 18 57 115
NT 2-IN 210 270 127 332 241 256 209 80 84 91 36,5 60 16 65 128
NT 3-IN 250 270 132 334 241 256 209 80 84 91 36,5 60 16 80 128
