Accessories for fuses in European standard

ACCESSORIES FOR FUSES IN EUROPEAN STANDARD

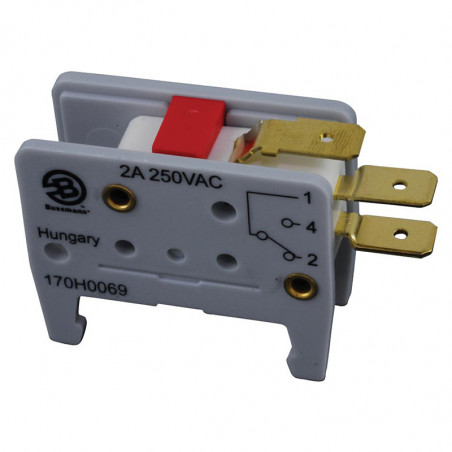

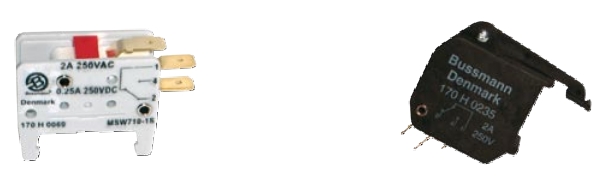

Micro relays for operation sensors


Table. Technical data


DimensionsDin 43 653Din 43 620French standardScrew in
Typ TTyp KTyp TTyp KTyp TTyp KTyp TTyp k
000 170H0236   170H0236
170H0238   170H0238
0 170H0235           170H0235
170H0237           170H0237
1* 170H0235 170H0069 170H0235 170H0069 170H0236 170H0069   170H0069
1 170H0235 170H0069     170H0236 170H0069   170H0069
2 170H0235 170H0069 170H0235 170H0069 170H0236 170H0069   170H0069
3 170H0235 170H0069 170H0235 170H0069 170H0236 170H0069   170H0069
4               170H0069
23               170H0069
24               170H0069

Fuses basis

Table. Universal fastening for DIN 43653 standard

TypeMax voltage
[V]
Current
[A]
B
[mm]
C
[mm]
Drawing
170H3003 1000 630 80 150 1
170H3004 1000 1250 80 150 2
170H3005 1400 630 110 180 1
170H3006 1400 1250 110 180 2

Drawing 1 - Dimensions [mm]


Table. Fuses fastening 000, 00 sizes

TypeMax voltage
[V]
Current
[A]
SizeDrawing
170H1007 1000 400 00, 000 3
170H1013 660 200 000, 0000 4
Drawing 2 - Dimensions [mm]



Drawing 3 - Dimensions [mm]
Drawing 4 - Dimensions [mm]

Disconnectors for knife fuses
Type
for power fuses  Din 43620/1
SizeNT 00-INNT 1-INNT 2-INNT 3-INNT 4-IN
001234a
            1250
Nominal connection current Ie A 160 250 400 630 16001)
            1250
Nominal thermal current in air Ith A 160 250 400 630 1600
Nominal connection voltage Ue V 690
Nominal insulation voltage Ui V 800
Nominal test voltage Uimp KV 8
Nominal short circuit current kA 50
Usage category VDE 0660 T107/EN/IEC 60947-3 Ue =440VAC AC-22 B
Ue =690VAC AC-21 B
Ue=440VAC2) DC-21 B
Mechanical durability cykle 1600 100 600 600 600
Ambient temperature °C od -25°C do 55°C
Protection degree DIN/EN 60529/VDE 0470 T1 IP 3X
            115
Maximal fuse insert power n/n Pv max. 12 23 34 48 140
Fuse insert weight kg 0,5 2 3,25 5,3 14
Type of nominal operation Constant operation

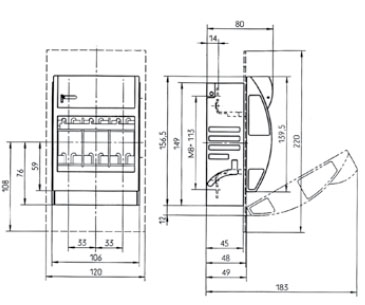

Dimensions [mm] - NT 00-IN

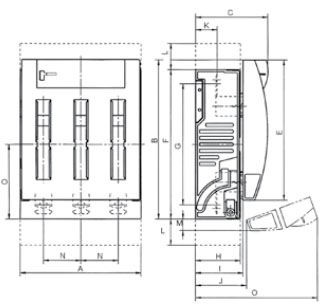

Dimensions [mm] - NT 1-IN, NT 2-IN, NT 3-IN



Dimensions
[mm]
ABCDEFGHIJKLMNO
NT 1-IN 184 245 110 293 216 230 186 68 72 77 33 40 18 57 115
NT 2-IN 210 270 127 332 241 256 209 80 84 91 36,5 60 16 65 128
NT 3-IN 250 270 132 334 241 256 209 80 84 91 36,5 60 16 80 128
