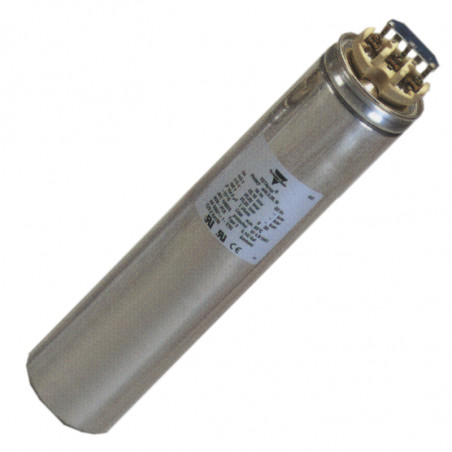

condensadores cilíndricos para poder
  • condensadores cilíndricos para poder

Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

Fabricante: Vishay

condensadores cilíndricos para poder

Electrical data

Voltage range: 230V/50Hz - 910V/50Hz
Power: 2,3kVAr - 250 kVAr

It is possible to purchase the whole battery with regulator. For details please contact DACPOL

Electrical data

Standards: IEC 831-1+2/88, EN 60831-1+2/93, VDE 560-46+47 3/95
Over voltage Ucn + 10% (up to 8 hours per day)
  Ucn + 15% (up to 30 minutes per day)
  Ucn + 20% (up to 5 minutes)
  Ucn + 30% (do1 minutes)
Over current: 1,3 * In,
  1,3 * with 10% over voltage,
  with 15% over capacity and THD
capacity tolerance -5/ + 10%
Voltage test (terminal - terminal)       2,15 * Ucn, AC, 2 sec
  ((terminal - casing)        4800 VAC, 2 sec
Test current 200*In
Losses 0,25 W/kVAr
Life time: > 100 000 hours
IP IP00
Operation temperature -25 / D (55°C), (-40 / D for request)
Casing temperature  65°C
Cooling Natural air
Humidity max. 95%
Maximum operation height: 2000 m above sea level
Assembly : vertical
Assembly: M12 screw
Protection Over pressure safety device, self regenerating
Casing: Aluminium box
Dielectric polypropylene foil , metallized with zinc
Impregnate: Natural oil
Electrical terminals casing Ø 84 mm: M5 screw in
  Casing  Ø
