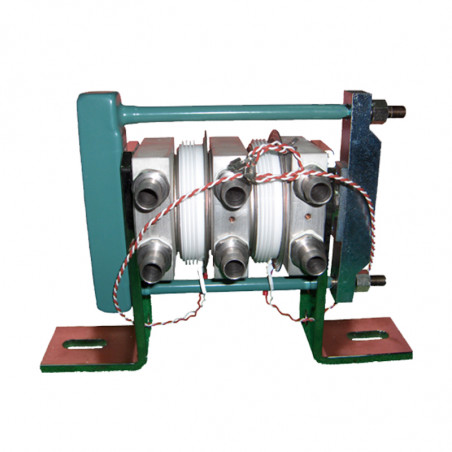

MÓDULO DUPLEX - M2C..W

Double thyristor module with water radiator

Properties:
• Double thyristor module with water radiator
• water cooling

Typical applications:
• rectifiers, converters, supplies.
• DC power regulators
• power contactors
• soft-starts

Options:
• Standard – Diagram. 1
• Execution with current busses
• With blacken radiator
• Thermal protection
• RC circuit
• fuse
• forced cooling

Power block selection:
• There are different semiconductors used, depending on the load. Used semiconductor size is given in the Table 1.

Drawing 1
 Scheme


Operation conditions:
Two element power blocks are used in power electronic systems.
• cooling water temperature 50 C - 300 C with ambient air temperature >-100 C
• Atmospheric pressure 860hPa do 1060hPa



Table 1 Power blocks parameters


Module type Mean current IF(AV) [A] Blocking voltage  U RRM
    [V]		 Overcurrent
I FSM
[A]		 Semiconductor size
[mm]		 Block Weight
[kg]
M2C7W 450…650 400…2400 7000…10000 3,2
M2C8W 630…1000 400…8500 10000…24000 3,6
M2C9W 1000…2000 400…7500 20000…42000 6,9
M2C11W 1000…3200 400…6000 27000…65000 19,0


Power block scheme M2C..W
