Fabricante: A.D. VIGANÒ

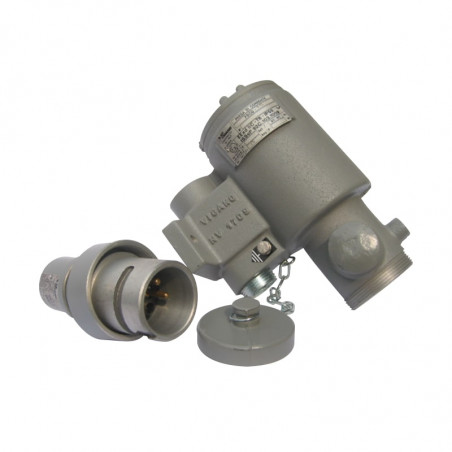

Conectores de alimentación para Ex Zonas - Serie FSCQ

II 2GD Ex d IIC T6/66 (Ambient temperature -20°C/-60°C to +40°C)

CERTIFICATE: ATEX, IECEx, GOST-R.

Explosion-proof receptacle with incorporated load switch. They are interlocked by the position of the plug in order that same can be inserted and taken off only when the circuit is open. The receptacle FSCQ 363 are fournished of fuses.
MATERAILS: Body: light alloy casting, bolt and screws: stainless steel
THREADS: GAS UNI 6125 or NPT on request.
STANDARD PAINTING: Grey epoxy RAL 7037

Code
Poles N°
Volt
Ampere
Ø Holes
Plugs type
Weight [kg]
FSCQ232/.*
2 + E
max 690*
16/32
2x1”
FPA2
2,3
FSCQ332/.*
3 + E
max 690*
16/32
2x1”
FPA3
2,3
FSCQ363/.*
3 + E
max 690*
63
2x1 1/2”
FP363
8,5

PLUGS FP and FPA

Code
POLES N°
Max Amp.
For Receptacles
Weight [kg]
FPA2
2 + E
16/32
FSCQ 232
0,4
FPA3
3 + E
16/32
FSCQ 332
0,4
FP363
3 + E
63
FSCQ 363
0,65

VOLTAGE COLOURS
V(violet)=20/25V, W(white)=40/50V, G(yellow)=100/130V, B(blue)=200/250V, R(red)=380/460V, N(black)=480/690V


Example to order: FSCQ232/B (2x16/32A 200/250V)

przyklad złącza przyklad złącza
