Fabricante: SALTEK

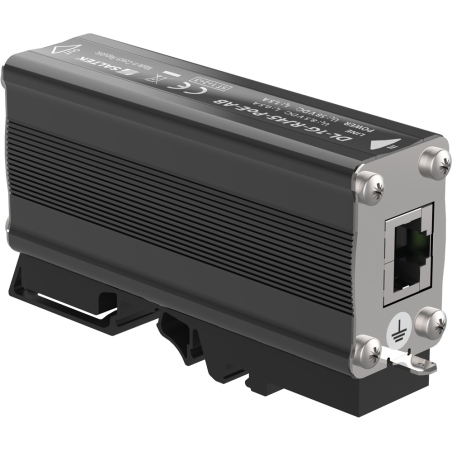

DL-1G-RJ45-PoE-AB - Protector contra sobretensiones (SPD)

  • DL-1G-RJ45-PoE-AB
  • Grado de protección IP 30 (without connectors IP 10)
  • Tipo de SPD D1,C2,C3
Parameter name Parameter value
Type of SPD D1,C2,C3
Location of SPD ST 1+2+3
Mounting DIN rail 35 mm
Maximum operating voltage core-core Uc 8,50V DC
Maximum operating voltage pair-pair (POE) Uc 58,00 V DC
Nominal load current per core at 25 °C IL 0.5 A
Treshold frequency core-core f 250.00 MHz
Insertion attenuation at treshhold frequency 2.80 dB
C2 nominal discharge current (8/20 µs) core-core In 0.15 kA
C2 nominal discharge current (8/20 µs) core-PE In 1.25 kA
C2 nominal discharge current (8/20 µs) pair-pair (POE) In 0.15 kA
D1 total discharge current (10/350 µs) cores-PE ITotal 2.00 kA
C2 total discharge current (8/20 µs) cores-PE ITotal 10.00 kA
C2 voltage protection level mode core-core (@Uoc/In) Up 60,00 V (0,3 kV / 0,15 kA)
C2 voltage protection level mode core-PE (@Uoc/In) Up 700,00 V (2,5 kV / 1,25 kA)
C2 voltage protection level mode pair-pair (POE) (@Uoc/In) Up 90,00 V (0,3 kV / 0,15 kA)
C3 voltage protection level mode core-core (@In - 1 kV/µs) Up 45,00 V (10 A)
C3 voltage protection level mode core-PE (@In - 1 kV/µs) Up 500,00 V (10 A)
C3 voltage protection level mode pair-pair (POE) (@In - 1 kV/µs) Up 85,00 V (10 A)
Response time core-core ta 1 ns
Response time core-PE ta 100 ns
Connection (input - output) RJ 45/RJ 45
Degree of protection IP 30 (without connectors IP 10)
Range of ambient temperatures (min/max) -10 / 50 °C
Humidity 15 - 85 %
According to standard EN 61643-21+A1,A2:2013, IEC 61643-21+A1,A2:2012
ETIM Class EC001473
Customs tariff number 85363010
EAN 8595090561484
