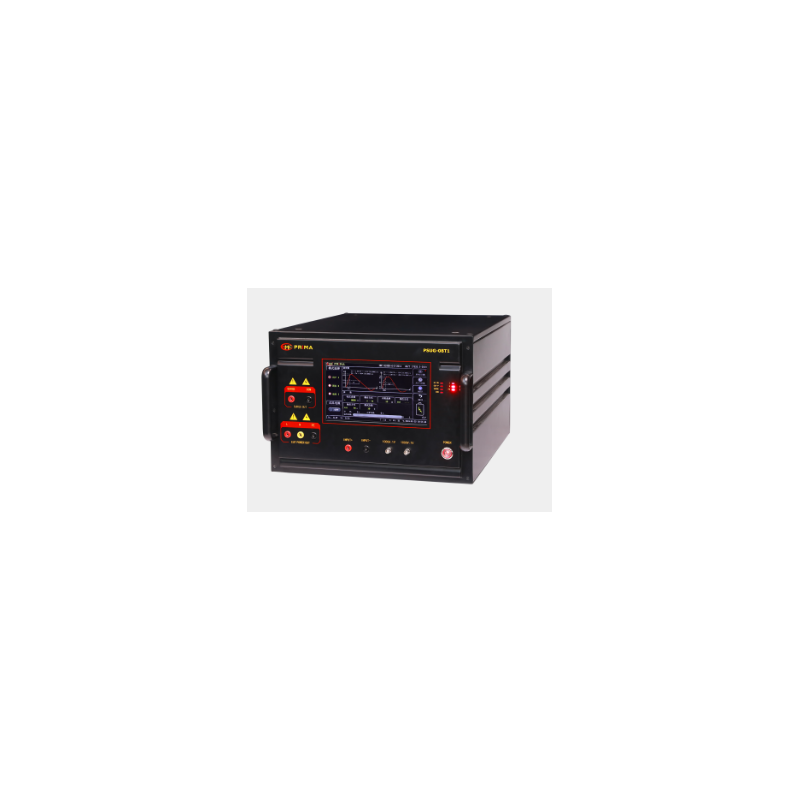

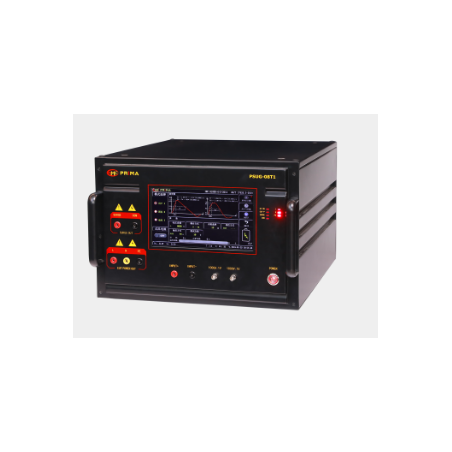

PSUG-08T1 Surge Simulator

  • PSUG-08T1

PSUG-08T1 is specifically designed to meet the requirements of electromagnetic compatibility immunity tests – surges (SUG). Used to evaluate the performance of power cables and internal connecting cables of electrical and electronic devices when exposed to high-energy transient interference caused by switching circuits and natural lightning strikes.

Features:

  • Ergonomic design
  • 10.1-inch color touchscreen
  • Freely reversible positive and negative polarity
  • Switchable between Chinese and English languages
  • Custom, enhanced, and standard modes
  • Superior technology, durability
  • Maximum test voltage up to 8 kV

Standard compliance:

  • IEC/EN60664
  • GB/T17626.5 / IEC61000-4-5
  • ITU K20
  • ANSI C62.41/45
  • GB/T16927.1
  • IEC/EN 61643-1
  • ITU K44
  • IEC/EN 61010

Parameters:

Parameter Value
Product Model PSUG-08T1
Open Circuit Voltage 200V ~ 8000V ±10%
Voltage Resolution 1 V
Rise Time (1) 1.2 µs ±30%
Duration (1) 50 µs ±20%
Short circuit current 100 A ~ 4000 A ±10%
Rise time (2) 8 µs ±20%
Duration (2) 20 µs ±20%
Output Polarity +, -, +/-, -/+
Output Impedance 2 µ
Voltage Surge 0 ~ 8000V
Interval Time 5 s ~ 9999 s
Number of Tests (Test Times) 1 ~ 60000
Trigger Mode Manual, External, Interval
Phase Synchronization 0° ~ 359° (50 Hz or 60 Hz) (Synchronous / Asynchronous)

Built-in CDN

Parameter Value
Coupling Single-phase three-wire coupling
Decoupling Load AC MAX 260V / 16A, DC MAX 220V / 16A
Coupling Capacitor 9 μF (L-PE), 18 μF (L-L)
Coupling Resistor 12 μF, 2 μF
Residual impulse voltage at the end of the device under test No more than 15% of the applied test voltage or twice the rated peak voltage of the coupling/separation network
