High Voltage EFT CDN PEFT-CDN-3100/3200-690

  • PEFT-CDN-3100-3200-690

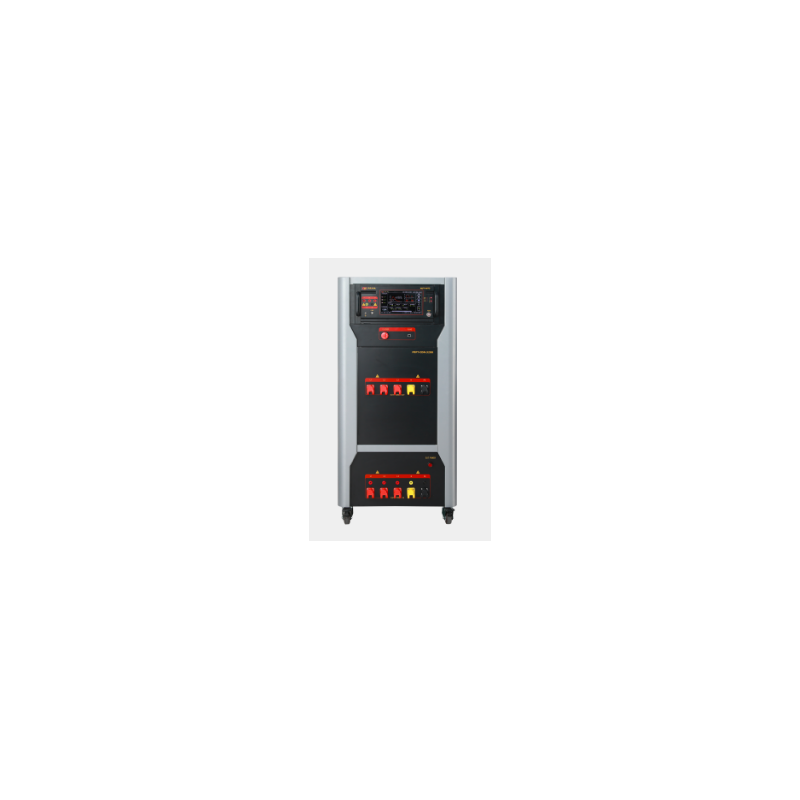

The PEFT-CDN-3100/3200-690 model is a high-voltage, high-current EFT pulse group coupling/decoupling network designed for AC/DC power pulse group testing. Allows automatic three-phase coupling and decoupling.

The maximum load on the EUT (device under test) is:

  • AC 690 V, 100 A / 200 A
  • DC 1000 V, 100 A / 200 A (three-phase, five-wire).

Other voltage and current values can be customized to customer requirements.

Features:

  • Maximum EUT load (DC): 1000 V, 100 A / 200 A
  • Maximum EUT load (AC): 690 V, 100 A / 200 A (3-phase, 5-wire)
  • Protection Overcurrent
  • High-current aviation connector - safe and reliable
  • Built-in parameters compliant with international standards - easy operation
  • Pulse injection phase angle: asynchronous or freely adjustable 0–360°
  • Pulse frequency: up to 1200 kHz (can be further increased)
  • Built-in RJ45 interface, optional remote control and measurement software

Standard compliance:

  • IEC / EN 61850-3
  • ANSI / IEEE C62.41
  • GB/T 17626.4 / IEC 61000-4-4
  • IEC / EN 61000-6-1
  • IEC / EN 60601-1-2

Parameters:

Parameter Value / Description
Output voltage range 200V ~ 5000V ±10%
Voltage Resolution 1V
Voltage Surge 1V
Voltage Accuracy < ±10%
Output Polarity +, -, +/-, -/+
T&H Built-in Thermometer and Humidity Meter
Source Impedance 50Ω
Pulse Rise Time 5ns ±30%
Pulse duration 50ns ±30% (50Ω load) 35ns ~ 150ns (1000Ω load)
Frequency range 0.1kHz ~ 1200kHz
Frequency resolution 0.1kHz
Standard Frequencies 5kHz, 100kHz
Pulse Group Duration 0.001 ~ 2550.000 ms
Pulse Group Period 300 ms (0.15 ~ 99.99 s)
Test Duration 1s ~ 9999s
Direct Output Mode Via Coaxial High Voltage Connector
Phase Sync 0° ~ 359° (for 45 Hz ~ 65 Hz) (synchronous, automatic, asynchronous)
Coupling Built-in 3-phase, 5-wire coupling
Load capacity UAC MAX 690V / 200A UDC MAX 1000V / 200A
