UGEKAK..D1 - isolierter mittlerer Spannungsspannungstransformator

UGECAK..D1 – Medium Voltage Insulated Voltage Transformer

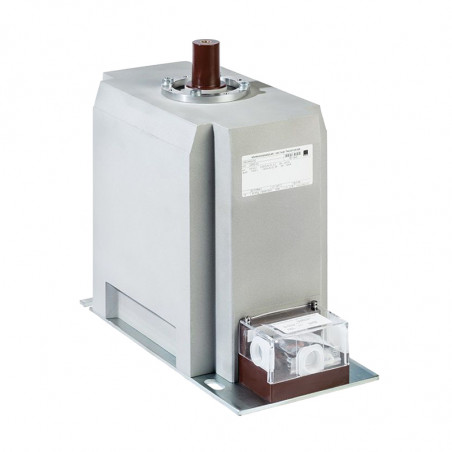

The UGECAK is a medium voltage insulated voltage transformer with screening against electric fields which enables mounting with no phase distance. This product is cast resin insulated and touch-proved. The transformer is able to measure voltage up to 12kV and is suitable for front- or top conus. The UGECAK is equipped with conical socket connection according to DIN47636. The voltage transformer can be used for switchgear, is maintenance-free and mountable in any position. The secondary terminals are protected with a sealable cover with a degree of protection of IP 20. The product is GOST approved.



Technical Specifications

Application Switchgear
Standard IEC61869-3, VDE 0414
Rated inulation voltage Up 12/28/75kV
Maximum rated primary voltage 11/ √3 kV
Rated voltage factor 1.9UN /8h, 1.2UN/continious
Secondary voltages 100/ √3 V or 110/ √3 V other options available on request
Rated output As required
For example. 2.5, 5, 10, 15, 30 VA
Accuracy class As required.
For example . 0.2, 3P
Rated terminal limiting output Sth 500VA Measuring winding
100VA Auxiliary winding
Rated frequency As required.
For example. 50/60 Hz
Class of insulation E
Secondary terminals Protected with a sealable cover, degree of protection IP 20


Dimensions

UGECAK..D1 – Medium Voltage Insulated Voltage Transformer - dimensions



Wiring Diagram

UGECAK..D1 – Medium Voltage Insulated Voltage Transformer - diagram
