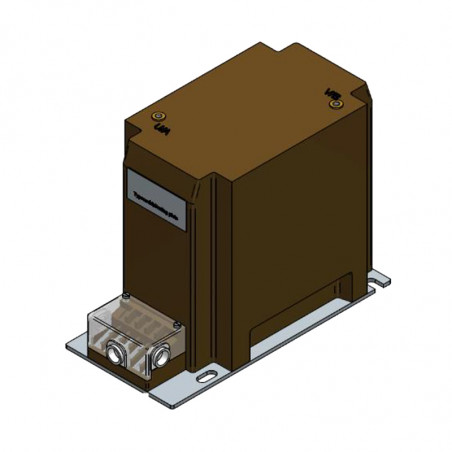

UGZT - Innenspanntransformatoren zur Stromversorgung Ihrer eigenen Bedürfnisse

Auxiliary power supply systems are needed to ensure the energy supply for the operation of primary or secondary devices in a station, switchgear or substation. These devices typically include: smart grid electronics, air conditioning, heating, lighting, power transformer cooling fans, station battery chargers (DC) and standard wall socket outlets. This double pole voltage transformer generates an output of 230 Volt.



Technical Specifications:

  UGZT..D2 UGZT..C1 UGZT..E6
Application Switchgear, Transformer statio Switchgear, Transformer station Switchgear, Transformer station
Standard IEC61869-3, VDE 0414 IEC61869-3, VDE 0414 IEC61869-3, VDE 0414
Rated insulation voltage Up to 12/28/75kV Up to 12/28/75kV Up to 24/50/125kV
Maximum rated primary voltage 11kV 11kV 22kV
Rated voltage factor 1,2 x UN for 8h, 1,2 x UN continuous 1,2 x UN for 8h, 1,2 x UN continuous 1,2 x UN for 8h, 1,2 x UN continuous
Secondary voltages 230V, other options available on
request		 230V, other options available on
request		 230V, other options available on
request
Rated output See teble 2 See teble 2 See teble 2
Rated frequency As required
For example 50-60Hz		 As required
For example 50-60Hz		 As required
For example 50-60Hz
Insulation class E E E
Secondary terminals Protected with a sealable cover,
degree of protection IP 20		 Protected with a sealable cover,
degree of protection IP 20		 Protected with a sealable cover,
degree of protection IP 20

Ordering Specifications (50/60Hz):

UIN

UGZT..D2

UGZT..C1

UGZT..E6
1,5kV 2000VA 750VA 4000VA
3kV 2000VA 750VA 4000VA
6,3kV 1500VA 750VA 3500VA
6,6kV 1500VA 750VA 3500VA
7,2kV 1300VA 600VA 3200VA
10kV 1300VA 600VA 3200VA
11kV 1300VA 600VA 3200VA
13,8kV - - 3000VA
17,5kV - - 2000VA
20kV - - 2000VA
22kV - - 2000VA

Dimensions

UGZT..D2

UGZT..C1

UGZT..E6

Wiring diagram:
