Thermisches Relais PTC-Typ IMR220K6
  • Thermisches Relais PTC-Typ IMR220K6

Fotos dienen nur zu Informationszwecken.

please use latin characters

Hersteller: ZIEHL

PTC -Thermalrelais -Typ MSR220K6

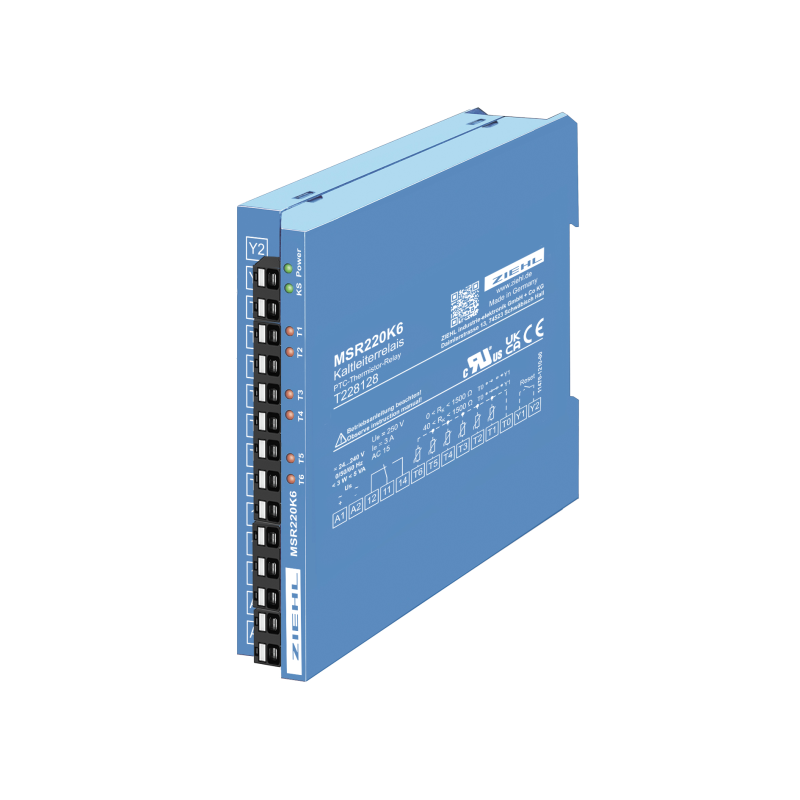

The MSR220K6 monitors up to 6 PTC-resistors sets with up to 6 PTCs each at the same time. If a temperature rise occurs in one set, the output relay releases and LEDs show the overheated sensor. Switching-off is stored until a Reset. Thus enables to find the overheated sensor even when it has cooled down.

With the MSR220K6 only 4 mm space is needed per monitored PTC-circuit. It is especially suitable for monitoring drives with multiple motors, like cranes or robots. Instead of the PTC-sensors also contacts (normally closed) can be connected.
  • blocking rotors, heavy starts, countercurrent operation
  • undervoltage and phase failure
  • increased ambient temperature and hindered cooling

The MSR220K2 monitors 2 PTC resistor sets at the same time. If a temperature rise occurs in one set, the appropriate output relay releases. With this relay, 2 PTC-sets can be independently monitored.

Part number:
T221958 AC / DC 24-240 V




Technical data


Rated supply voltage Us AC/DC 24 - 240 V, AC 19 - 264 V, DC 20 - 297 V, ≤ 2 VA
Connectable PTC resistors 6 x 1...6 PTC according to DIN VDE V 0898-1-401 (formerly DIN 44081/82)
Switching point <4000 Ω
Output relay change-over-contact (co)
Type of contact Type 2 (see general technical information)
Test conditions see general technical information
Rated ambient temperature -20 ... + 55 ° C
Dimensions h x w x d Design K: 75 x 22.5 x 115 [mm]
Attachment on 35 mm DIN rail according to EN 60 715 or screws M4
Protection Housing/Terminals IP30 / IP20
Weight approx. 145 g
