KE-LED-EX 4003 - Handlampen für Exzonen
  • KE-LED-EX 4003 - Handlampen für Exzonen

Fotos dienen nur zu Informationszwecken.

please use latin characters

Hersteller: KIRA Leuchten

KE-LED-EX 4003 P - Handlampen für Exzonen

KE-LED-EX 4003

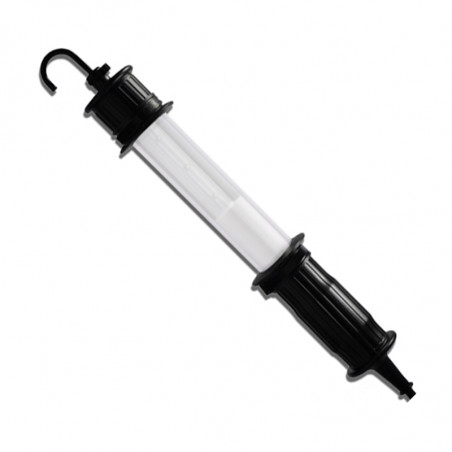

Explosion-proof LED hand lamp, robust, compact and handy. Ideal for maintenance- and inspection works in areas where safety regarding explosion protection is required. Dazzle-free based on integrated diffusor foil.

  • Protection tube: polycarbonate, shock-resistant, 40mm Ø
  • Handle / end cap: neoprene, black
  • Metal hook: yes, plastified, rotatable
  • Protection category: IP68 -50m/5h
  • Protection class: II / III
  • Cable: 10m H07RN-F 2x1,00 mm²
  • Voltage: 230V / 110V / 42V / 24V / 12V
  • Special requests - as covered by our Ex-certificaton - can be fulfilled.


Technical details

Type Watt Voltage Volt Amp. Lumen
ca.		 Protection
class		 Protecion
tube		 Protecion
categoru		 Cale 10 Meter Plug

Weiht
[kg]

 Art.-No

KE-LED-EX 4003/230

 3 230V AC 0,035 300 II Polycarbonate IP68 H07BQ-F without 1,560 147100

KE-LED-EX 4003/110

 3 110V AC/DC 0,035 300 II Polycarbonate IP68 H07BQ-F without 1,560 147110

KE-LED-EX 4003/42

 3 42V AC/DC 0,090 300 II Polycarbonate IP68 H07BQ-F without 1,560 147120

KE-LED-EX 4003/24

 3 24V AC/DC 0,120 300 III Polycarbonate IP68 H07BQ-F without 1,560 147130

KE-LED-EX 4003/12

 3 12V AC/DC 0,240 300 III Polycarbonate IP68 H07BQ-F without 1,560 147140

ATEX Identification

EX II 2 G Ex eb mb op is IIC T4 Gb
EX II 2 D Ex tb op is IIIC T105°C Db IP68
ATEX No. TÜV 18 ATEX 8184


Dimensions

  a b c d e f g

KE-Ex 6818

 430 64 40 85 65 240 40

Dimensions in mm
