Hersteller: TM Induction Heating

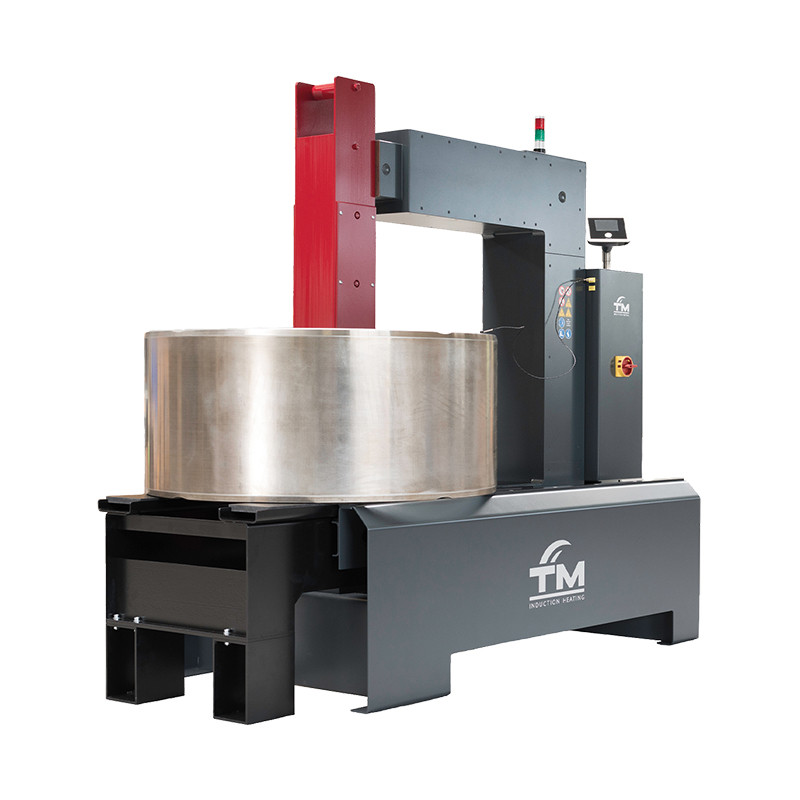

Induktionsheizung SURETHERM PRO 6X

Induction heater SURETHERM PRO 6X

With our new generation of low frequency equipment, we offer the most efficient heaters for a wide range of applications.

Our SURETHERM and EASYTHERM series assure a safe heating process, where only the workpiece is heated. The heaters are suitable for sealed and shielded bearings, pre-greased bearings, bearings with polyamide cages, gearwheels, pulleys, couplings, and bushings.



Specifications


Power Rating 40 kVA
Facility Power 400 - 480 - 575 V / 100 A / 50/60 Hz
Temperature Control Single / Dual
Weight 650 kg
Operating Area (WxH) 690 x 700 mm
Dimensions (LxBxH) 1500 x 800 x 1600 mm
Min. bore diameter (workpiece) ø 85 mm
Max. outer diameter (workpiece) ø 2000 mm
Max. weight (workpiece) 1600 Kg


Weniger
Weiterlesen

Senden Sie eine Anfrage

Interessieren Sie sich für dieses Produkt? Benötigen Sie zusätzliche Informationen oder individuelle Preise?

Kontaktiere uns
FRAGEN SIE NACH DEM PRODUKT close
Vielen Dank für die Zusendung Ihrer Nachricht. Wir werden so schnell wie möglich antworten.
FRAGEN SIE NACH DEM PRODUKT close
Durchsuche
Senden Sie eine Anfrage

Zur Wunschliste hinzufügen

Sie müssen eingeloggt sein

Induction heater SURETHERM PRO 6X

With our new generation of low frequency equipment, we offer the most efficient heaters for a wide range of applications.

Our SURETHERM and EASYTHERM series assure a safe heating process, where only the workpiece is heated. The heaters are suitable for sealed and shielded bearings, pre-greased bearings, bearings with polyamide cages, gearwheels, pulleys, couplings, and bushings.



Specifications


Power Rating 40 kVA
Facility Power 400 - 480 - 575 V / 100 A / 50/60 Hz
Temperature Control Single / Dual
Weight 650 kg
Operating Area (WxH) 690 x 700 mm
Dimensions (LxBxH) 1500 x 800 x 1600 mm
Min. bore diameter (workpiece) ø 85 mm
Max. outer diameter (workpiece) ø 2000 mm
Max. weight (workpiece) 1600 Kg
