Hersteller: TELE Haase

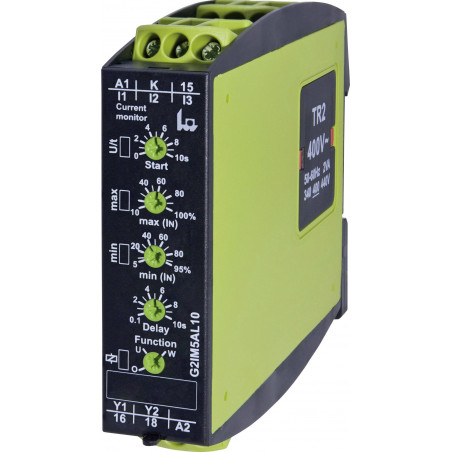

G2IM5AL10 - Stromüberwachungsrelais

  • G2IM5AL10
  • Nennwert 0,02/1/5A AC/DC
  • Ausgang 1 x przełączalne
  • Anzahl der Phasen jednofazowe
  • Netzteil moduł TR 12-400V AC

G2IM5AL10 - Current monitoring relay

G2IM5AL10 is an AC or DC monitoring relay with one measuring channel dedicated to the detection of underloads and overcurrents in the monitored circuit. Three measuring ranges (20mA-1A-5A). The user can choose from 3 functions (in the variant with or without a latch) and one relay output. The G2IM5AL10 was designed with power distribution systems and control cabinets in mind. The simplicity of operation by means of adjusters placed on the front panel, compact size and power supply from the measuring circuit make the device perfect for all kinds of applications. It has compact dimensions (width 22.5 mm) and is designed to be mounted on a DIN rail. It can be used in many applications thanks to EU, UL, cUL and EAC certifications.

Weniger
Weiterlesen

Senden Sie eine Anfrage

Interessieren Sie sich für dieses Produkt? Benötigen Sie zusätzliche Informationen oder individuelle Preise?

Kontaktiere uns

FRAGEN SIE NACH DEM PRODUKT close
Nachricht erfolgreich gesendet.
FRAGEN SIE NACH DEM PRODUKT close
Durchsuche

Zur Wunschliste hinzufügen

Sie müssen eingeloggt sein

  • Nennwert 0,02/1/5A AC/DC
  • Ausgang 1 x przełączalne
  • Anzahl der Phasen jednofazowe
  • Netzteil moduł TR 12-400V AC

G2IM5AL10 - Current monitoring relay

G2IM5AL10 is an AC or DC monitoring relay with one measuring channel dedicated to the detection of underloads and overcurrents in the monitored circuit. Three measuring ranges (20mA-1A-5A). The user can choose from 3 functions (in the variant with or without a latch) and one relay output. The G2IM5AL10 was designed with power distribution systems and control cabinets in mind. The simplicity of operation by means of adjusters placed on the front panel, compact size and power supply from the measuring circuit make the device perfect for all kinds of applications. It has compact dimensions (width 22.5 mm) and is designed to be mounted on a DIN rail. It can be used in many applications thanks to EU, UL, cUL and EAC certifications.
