MICRO SWITCH™ Abgedichtete Schalter SE-Serie
  • MICRO SWITCH™ Abgedichtete Schalter SE-Serie

Fotos dienen nur zu Informationszwecken.

please use latin characters

Hersteller: Honeywell

MICRO SWITCH™ Abgedichtete Schalter SE-Serie

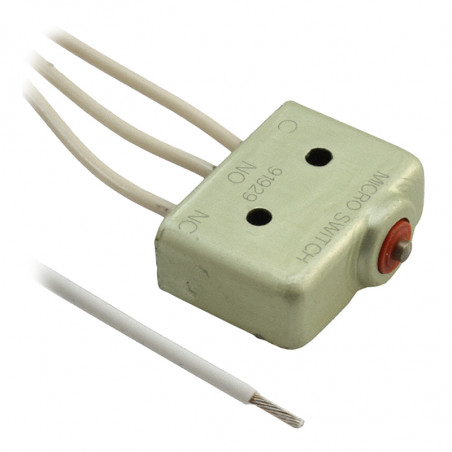

SE and XE switches are the smallest environment-sealed switches offered by MICRO SWITCH. Both types enclose basic switches within a corrosion resistant aluminum housing to seal precision switch contacts from contamination. SE switches include a SM basic switch, and XE switches include the smaller SX basic switch.

Technical data

  • max. operation temperature: 105°C
  • current load: 5A
  • different lever types

Type Contact parameters Charasteristics Preferences Cable lenght
[cm]
O.F.
[N]		 R.F. min
[N]		 P.T. max
[mm]		 O.T. min
[mm]		 D.T.max
[mm]		 O.P.
[mm]
1SE1 SPDT 5A/125 or 250VAC, 60Hz 1,39-4,73 1,11 1,27 0,08 0,1 10,8 Most of applications 30
5SE1 SPDT 5A/125 or 250VAC, 60Hz 1,39-4,73 1,11 1,27 0,08 0,1 10,8 Oil-seal 30
5SE1-3 SPDT 5A/125 or 250VAC, 60Hz 1,39-4,73 1,11 1,27 0,08 0,1 10,8 Oil-seal 90
5SE1-6 SPDT 5A/125 or 250VAC, 60Hz 1,39-4,73 1,11 1,27 0,08 0,1 10,8 Oil-seal 180
5SE1-12 SPDT 5A/125 or 250VAC, 60Hz 1,39-4,73 1,11 1,27 0,08 0,1 10,8 Oil-seal 360

Dimensions [inches]

O.F. - Operating Force
R.F. - Release Force
P.T. - Pretravel
O.T. - Overtravel
D.T. - Diferential travel
O.P. - Operating Position
F.P. - Free Position

MIKROWYŁĄCZNIKI SERII SE wymiary

Levers

Type Lever type Lenght
[mm]		 Characteristic
O.F.
[N]		 R.F. min
[N]		 P.T. max
[mm]		 O.T. min
[mm]		 D.T.max
[mm]		 O.P.
[mm]		 F.P.
[mm]
JE1 Straight 16,8 3,34 0,56 3,81 0,38 0,64 11,2 15± 0,76
JE5 With roller 14,2 3,34 0,56 3,81 0,38 0,64 11,2 20,1± 0,76
JE12 Straight 26,1 3,34 0,56 3,81 0,38 0,64 11,2 16,8± 0,76
Weniger
Weiterlesen

Senden Sie eine Anfrage

Interessieren Sie sich für dieses Produkt? Benötigen Sie zusätzliche Informationen oder individuelle Preise?

Kontaktiere uns

FRAGEN SIE NACH DEM PRODUKT close
Nachricht erfolgreich gesendet.
FRAGEN SIE NACH DEM PRODUKT close
Durchsuche

Zur Wunschliste hinzufügen

Sie müssen eingeloggt sein

SE and XE switches are the smallest environment-sealed switches offered by MICRO SWITCH. Both types enclose basic switches within a corrosion resistant aluminum housing to seal precision switch contacts from contamination. SE switches include a SM basic switch, and XE switches include the smaller SX basic switch.

Technical data

  • max. operation temperature: 105°C
  • current load: 5A
  • different lever types

Type Contact parameters Charasteristics Preferences Cable lenght
[cm]
O.F.
[N]		 R.F. min
[N]		 P.T. max
[mm]		 O.T. min
[mm]		 D.T.max
[mm]		 O.P.
[mm]
1SE1 SPDT 5A/125 or 250VAC, 60Hz 1,39-4,73 1,11 1,27 0,08 0,1 10,8 Most of applications 30
5SE1 SPDT 5A/125 or 250VAC, 60Hz 1,39-4,73 1,11 1,27 0,08 0,1 10,8 Oil-seal 30
5SE1-3 SPDT 5A/125 or 250VAC, 60Hz 1,39-4,73 1,11 1,27 0,08 0,1 10,8 Oil-seal 90
5SE1-6 SPDT 5A/125 or 250VAC, 60Hz 1,39-4,73 1,11 1,27 0,08 0,1 10,8 Oil-seal 180
5SE1-12 SPDT 5A/125 or 250VAC, 60Hz 1,39-4,73 1,11 1,27 0,08 0,1 10,8 Oil-seal 360

Dimensions [inches]

O.F. - Operating Force
R.F. - Release Force
P.T. - Pretravel
O.T. - Overtravel
D.T. - Diferential travel
O.P. - Operating Position
F.P. - Free Position

MIKROWYŁĄCZNIKI SERII SE wymiary

Levers

Type Lever type Lenght
[mm]		 Characteristic
O.F.
[N]		 R.F. min
[N]		 P.T. max
[mm]		 O.T. min
[mm]		 D.T.max
[mm]		 O.P.
[mm]		 F.P.
[mm]
JE1 Straight 16,8 3,34 0,56 3,81 0,38 0,64 11,2 15± 0,76
JE5 With roller 14,2 3,34 0,56 3,81 0,38 0,64 11,2 20,1± 0,76
JE12 Straight 26,1 3,34 0,56 3,81 0,38 0,64 11,2 16,8± 0,76
Weniger
Weiterlesen
