Hersteller: Esit Elektrik

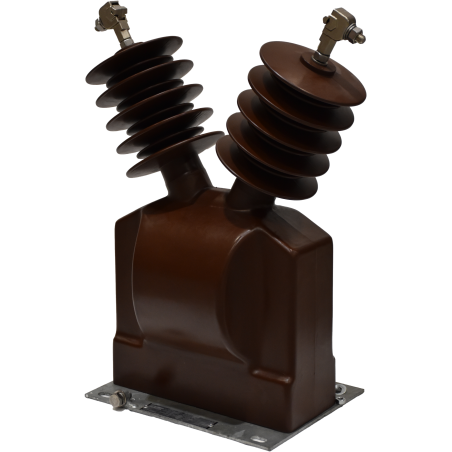

DAC PW1 - Overhead-Spannungswandler, um Ihre eigenen Bedürfnisse zu schaffen

DAC PW1 – Outdoor Use Auxiliary Power Supply

Auxiliary power supply systems are needed to ensure the energy supply for the operation of primary or secondary devices in a station, switchgear or substation. These devices typically include: smart grid electronics, power transformer cooling fans, station battery chargers (DC) and standard wall socket outlets. This double pole voltage transformer generates an output of 230 Volt.



Rated data

Rated primary voltage 15750V
Rated secondary voltage 230V
Rated 50Hz withstand voltage 50kV
Rated surge voltage 95kV
Rated frequency 50Hz
Rated burden 500VA
Weight 47kg
Secondary terminal protection degree IP 54
Insulation class E
Housing Cast resin
Standard EN 61869 – 3:2011
*This is only sample of rated data. We produce out transformers in accordance to clients requirements.

Dimensions

DAC PW1 – Napowietrzne przekładniki napięciowe do zasilania potrzeb własnych
