Hersteller: SALTEK

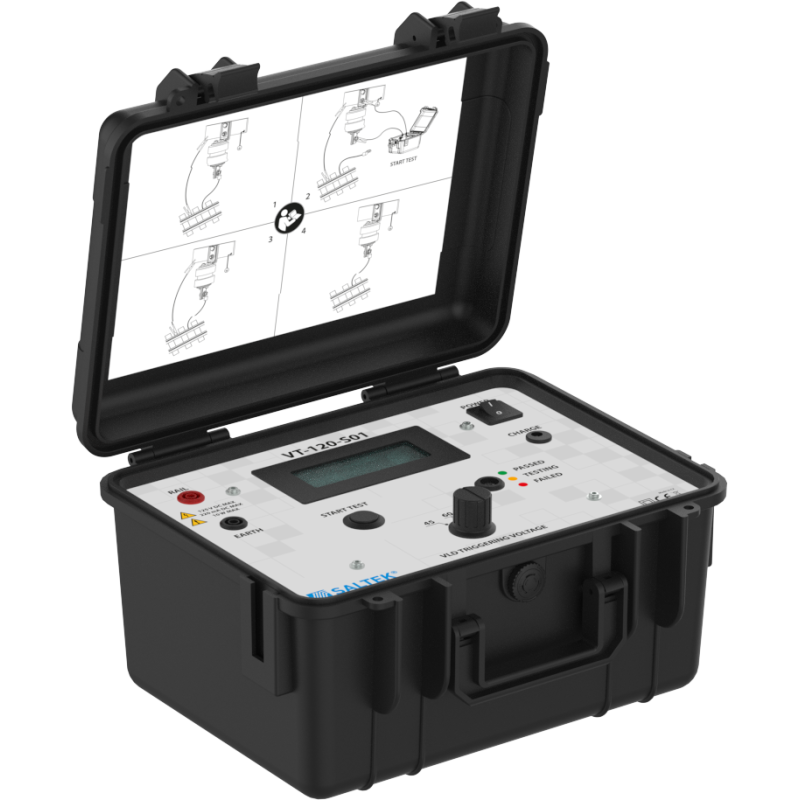

VT-120-S01 - Diagnosegerät

  • VT-120-S01
Parameter name Parameter value
Number of voltage options (UTn) 3 (45 / 60 / 120 V)
Output voltage range 35 - 125 V
Maximum output current 220 mA
Automatic discharge of the measured object no
Battery accumulator Li-ion 12,6 V, 6800 mAh
Charging adapter power supply 100 - 240 V AC, 50 - 60 Hz
Charging time 4 h
Battery life / number of measurements 8 h / 100+
Display LCD, 20 × 4 mm, blue
Weight 2.50 kg
Location (when charging) Inside
Location (in operation) Outdoor
Temperature range (charging) (min/max) 10 / 45 °C
Temperature range (operating) (min/max) −10 / 40 °C
Altitude up to 4000 m above sea level
Humidity 10 - 95 %
Pollution degree (IEC 60664-1) 2
Degree of protection (closed lid) IP 57
Degree of protection (open lid) IP 20
Degree of mechanical resistance IK 08 (5 J)
According to standard EN 61010-1, IEC 61010-1, EN IEC 61326-1, IEC 61326-1
ETIM Class EC002495
Customs tariff number 85301000
EAN 8595090571254
