Duale Diodenmodule POW-R-BLOK™
  • Duale Diodenmodule POW-R-BLOK™

Fotos dienen nur zu Informationszwecken.

please use latin characters

Hersteller: POWEREX

Duale Diodenmodule POW-R-BLOK™

Type IF((AV)/TC
[A/°C]
VRRM/VRRM
[V]
Moc max.
[W]
Igt
[mA]
I2t
[A2s]
dV/dt
[V/µs]
Rthjc
[°C/W]
Rthcs
[°C/W]
Casing
P1Z7AAR700W_ 355/105 2200 - 3000 1125 0,04 0,01 0 13
P1Z8ABR800W_ 435/105 1200 - 2200 1125 0,04 0,01 0 13
P1Z9AAR900W_ 590/105 2200 - 3000 1500 0,03 0,008 0 13
P1Z9ACR900W_ 740/105 800 - 1200 1500 0,03 0,008 0 13
P1Z9ADR900W_ 800/110 600 1330 0,03 0,008 0 13
P1ZAADDA00W_ 985/80 3600 - 5000 0,024 0,007 0 13
P1ZAABRA00W_ 1270/80 2200 - 3000 0,03 0,008 0 13
P1ZAACRA00W_ 1420/80 1800 - 2200 0,03 0,008 0 13
P1ZAADRA00W_ 1585/80 1200 - 1800   0,03 0,008 0 13

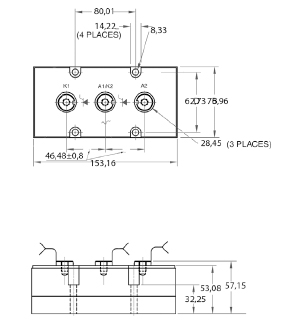

Drawing 13 dimensions [mm]
