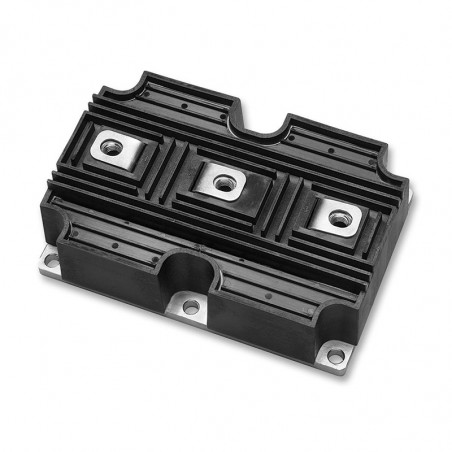

Einzeldioden-Module
  • Einzeldioden-Module

Fotos dienen nur zu Informationszwecken.

please use latin characters

Hersteller: POWEREX

Einzeldioden-Module

TypeIF((AV)/TC
[A/°C]
URRM/VRRM
[V]
IFSM
[A]
I2t
[A2s]
Rthjc
[°C/W]
Rthcs
[°C/W]
Casing

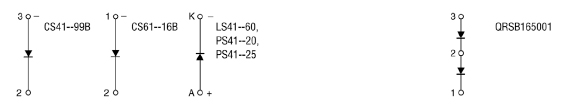

CS41-99B 100/85 800 - 1800 2000 20000 0,175 0,1 1
CS61-16B 160/94 800 - 1800 5000 125000 0,09 0,05 2
LS41--60 600/106 800 - 2400 31500 4,9 x 106 0,065 0,02 3
PS41-20 2000/99 3600 - 4000 60690 18,4 x 106 0,024 0,009 4
PS41--25 2500/90 800 - 2400 72600 26,3 x 106 0,024 0,009 4
QRSB165001 650/80 11000 6000 1,80 x 105 0,0185 0,01 14



Drawing 1 dimensions [mm]
Drawing 2 dimensions [mm]
Drawing 3 dimensions [mm]
Drawing 4 dimensions [mm]
Drawing 14 dimensions [mm]
