Fotos dienen nur zu Informationszwecken.
please use latin characters

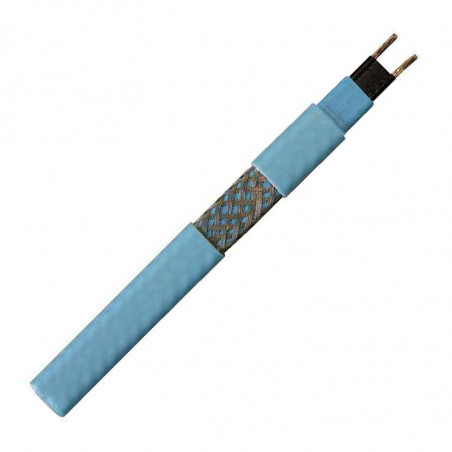

Electrical heating tape for frost protection or temperature maintenance of instrument lines, pipework or vessels in safe or hazardous area environments.
- Automatically adjusts heat output in response to heated surface temperature.
- Can be cut-to-length with minimal wastage.
- Suitable for light industrial and commercial applications up to +85°C.
- Full range of terminations, controls, accessories and approvals available.
- Will not overheat, even when overlapped.
- Available for 220?277V AC (110V...120V AC upon request)
Description
Quintherm ILLw is a light industrial/commercial grade self-regulating heating tape that can be used for freeze protection or temperature maintenance of pipework or vessels in the construction and refrigeration industries up to and including 85°C which are not subject to steam cleaning.
It can be cut-to-length on site to match exact pipe lengths without any complicated design considerations.
ILLw is approved for use in non-hazardous, hazardous or corrosive environments to world-wide standards.
Its self-regulating characteristics improve safety and reliability. ILLw will not overheat or burnout, even when overlapped upon itself. Its power output is automatically self-regulated in response to pipe or heated surface temperature.
Installation of Quintherm ILLw is quick and easy, requiring no special tools or skills. Terminations, inline splicing and power connection components are all available in convenient kits.
Available Options
ILLw../Qx - Base heating tape without any braiding or outerjacket. (only for non-Ex applications)
ILLw..C/Qx - Base heating tape with tinned copper braid providing mechanical protection or where Traced equipment does not provide an effective earth path, e.g. plastic or non-metallic pipework or surfaces.
ILLw..CT/Qx - Base heating tape with tinned copper braid and thermoplastic outerjacket for added mechanical and light chemical protection.
ILLw..CF/Qx - Base heating tape with tinned copper braid and fluoropolymer outerjacket for added mechanical and aggressive chemical protection.
Technical Data
Max. Allowed Exposure Temperature: Power On: Power Off: |
|
85°C 85°C |
|
Min. Installation Temperature: | -40OC |
Min. Operating Temperature: | -65OC |
Power Supply: | 220-277V AC |
Temperature Class.: | T6 = up to and incl. ILL31w... T4 = ILLw40... |
Max. Resistance of Protective Braiding: | ≤18,2 Ω/km |
Type | Dimensions Nominal (mm) | Weight kg/100 m | Min. Bending Radius (mm) | Gland Size |
---|---|---|---|---|
ILLw.. | 10,75 x 3,75 | 5,6 | 25 | M20 |
ILLw..C | 11,75 x 4,75 | 9,5 | 30 | M20 |
ILLw..CT | 12,95 x 5,95 | 11,8 | 35 | M20 |
ILLw..CF | 12,95 x 5,95 | 12,6 | 35 | M20 |
Nominal Power Output at 230V AC, when ILLw is installed on thermally insulated carbon steel pipes.
Max. Cct Length (m) vs. MCB Size (A)
Typ | Startowa Temp. |
10A | 16A | 20A | 25A |
---|---|---|---|---|---|
ILL122.. | 5°C | 152 | 198 | - | - |
0°C | 122 | 196 | 198 | - | |
-20°C | 84 | 136 | 170 | 198 | |
-40°C | 74 | 118 | 148 | 184 | |
ILL172.. | 5°C | 102 | 154 | - | - |
0°C | 82 | 130 | 154 | - | |
-20°C | 66 | 106 | 132 | 154 | |
-40°C | 50 | 80 | 100 | 124 | |
ILLw252... | 5°C | 76 | 122 | 124 | - |
0°C | 62 | 98 | 122 | 124 | |
-20°C | 34 | 56 | 70 | 88 | |
-40°C | 32 | 50 | 64 | 80 | |
ILLw312.. | 5°C | 46 | 74 | 92 | 110 |
0°C | 34 | 54 | 66 | 84 | |
-20°C | 26 | 40 | 50 | 64 | |
-40°C | 24 | 38 | 48 | 60 | |
ILLw402.. | 5°C | 34 | 56 | 70 | 88 |
0°C | 24 | 40 | 50 | 60 | |
-20°C | 20 | 30 | 38 | 48 | |
-40°C | 18 | 30 | 36 | 46 |
Nominal Power Output at 230V AC, when ILLw is installed on thermally insulated carbon steel pipes.
Accessories
A full range of accessories are available to compliment our heating tapes, such as terminations, end seals, junction boxes and thermostats. Most items carry separate approvals where required for use in hazardous areas.
Senden Sie eine Anfrage
Interessieren Sie sich für dieses Produkt? Benötigen Sie zusätzliche Informationen oder individuelle Preise?
Kontaktiere uns
Sie müssen eingeloggt sein
Electrical heating tape for frost protection or temperature maintenance of instrument lines, pipework or vessels in safe or hazardous area environments.
- Automatically adjusts heat output in response to heated surface temperature.
- Can be cut-to-length with minimal wastage.
- Suitable for light industrial and commercial applications up to +85°C.
- Full range of terminations, controls, accessories and approvals available.
- Will not overheat, even when overlapped.
- Available for 220?277V AC (110V...120V AC upon request)
Description
Quintherm ILLw is a light industrial/commercial grade self-regulating heating tape that can be used for freeze protection or temperature maintenance of pipework or vessels in the construction and refrigeration industries up to and including 85°C which are not subject to steam cleaning.
It can be cut-to-length on site to match exact pipe lengths without any complicated design considerations.
ILLw is approved for use in non-hazardous, hazardous or corrosive environments to world-wide standards.
Its self-regulating characteristics improve safety and reliability. ILLw will not overheat or burnout, even when overlapped upon itself. Its power output is automatically self-regulated in response to pipe or heated surface temperature.
Installation of Quintherm ILLw is quick and easy, requiring no special tools or skills. Terminations, inline splicing and power connection components are all available in convenient kits.
Available Options
ILLw../Qx - Base heating tape without any braiding or outerjacket. (only for non-Ex applications)
ILLw..C/Qx - Base heating tape with tinned copper braid providing mechanical protection or where Traced equipment does not provide an effective earth path, e.g. plastic or non-metallic pipework or surfaces.
ILLw..CT/Qx - Base heating tape with tinned copper braid and thermoplastic outerjacket for added mechanical and light chemical protection.
ILLw..CF/Qx - Base heating tape with tinned copper braid and fluoropolymer outerjacket for added mechanical and aggressive chemical protection.
Technical Data
Max. Allowed Exposure Temperature: Power On: Power Off: |
|
85°C 85°C |
|
Min. Installation Temperature: | -40OC |
Min. Operating Temperature: | -65OC |
Power Supply: | 220-277V AC |
Temperature Class.: | T6 = up to and incl. ILL31w... T4 = ILLw40... |
Max. Resistance of Protective Braiding: | ≤18,2 Ω/km |
Type | Dimensions Nominal (mm) | Weight kg/100 m | Min. Bending Radius (mm) | Gland Size |
---|---|---|---|---|
ILLw.. | 10,75 x 3,75 | 5,6 | 25 | M20 |
ILLw..C | 11,75 x 4,75 | 9,5 | 30 | M20 |
ILLw..CT | 12,95 x 5,95 | 11,8 | 35 | M20 |
ILLw..CF | 12,95 x 5,95 | 12,6 | 35 | M20 |
Nominal Power Output at 230V AC, when ILLw is installed on thermally insulated carbon steel pipes.
Max. Cct Length (m) vs. MCB Size (A)
Typ | Startowa Temp. |
10A | 16A | 20A | 25A |
---|---|---|---|---|---|
ILL122.. | 5°C | 152 | 198 | - | - |
0°C | 122 | 196 | 198 | - | |
-20°C | 84 | 136 | 170 | 198 | |
-40°C | 74 | 118 | 148 | 184 | |
ILL172.. | 5°C | 102 | 154 | - | - |
0°C | 82 | 130 | 154 | - | |
-20°C | 66 | 106 | 132 | 154 | |
-40°C | 50 | 80 | 100 | 124 | |
ILLw252... | 5°C | 76 | 122 | 124 | - |
0°C | 62 | 98 | 122 | 124 | |
-20°C | 34 | 56 | 70 | 88 | |
-40°C | 32 | 50 | 64 | 80 | |
ILLw312.. | 5°C | 46 | 74 | 92 | 110 |
0°C | 34 | 54 | 66 | 84 | |
-20°C | 26 | 40 | 50 | 64 | |
-40°C | 24 | 38 | 48 | 60 | |
ILLw402.. | 5°C | 34 | 56 | 70 | 88 |
0°C | 24 | 40 | 50 | 60 | |
-20°C | 20 | 30 | 38 | 48 | |
-40°C | 18 | 30 | 36 | 46 |
Nominal Power Output at 230V AC, when ILLw is installed on thermally insulated carbon steel pipes.
Accessories
A full range of accessories are available to compliment our heating tapes, such as terminations, end seals, junction boxes and thermostats. Most items carry separate approvals where required for use in hazardous areas.
