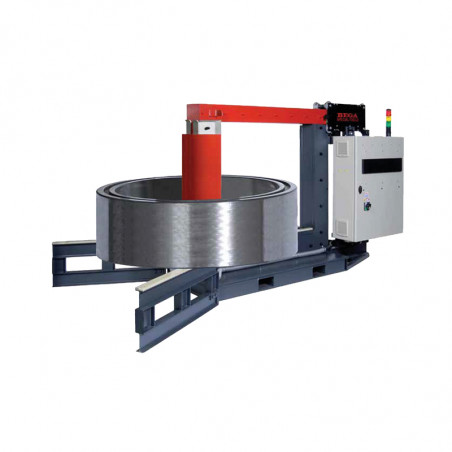

Riesiger XL-Turbo 40, 100 KVA-Induktionsheizung
Riesiger XL-Turbo 40, 100 KVA-Induktionsheizung

Fotos dienen nur zu Informationszwecken.

please use latin characters

Hersteller: Bega Special Tools

Riesiger XL-Turbo 40, 100 KVA-Induktionsheizung

Specifications

Type BETEX

GIANT XL
TURBO
Facility power 40, 48, 100kVA
Voltage/Amp* 400/500V
100, 120, 250A
Frequenz Hz 50/60Hz
Yokes, standard mm/ set 1 included
Yokes, standard mm/ set 2 1 yoke
Swivel arm -
Max. weight. ± kg - bearings 1500/12000*3
- other parts <12000*3
Min. ID Ø: mm 115/240*3
Max. OD Ø :mm*A 1400/2500*3
Max. width: mm *B 450/1020*3
Max. widthd at *C
horizontal heating: mm		 450/1000*3
Cross section poles mm *D 200*3
Pole height mm 900*3
Temperature control
ºC/ F		 - max reach* 240/350ºC*2
- magnetic probe yes
- digital display yes
Time control - max. reach 0-99 min.
- digital display yes
Sound signal yes
Error report yes
Temperature hold yes
Automatic power reduction yes
Automatic demagnetising,<2A/cm yes
Thermal safety guard yes
Support for horizontal heating yes
Dimensions mm (lxbxh) 2350x1000x1875*3
Weight heater kg
excl. Yokes		 1800 kg*3
Electric crane for yokes optional
Alarm signal optional
Mobile optional





*3 Subject to power and execution
On request:other voltage/ amperage/ higher temperature up to 480ºC

Heating times are subject to the relationship between:
• Min. bore and max. outside diameter, width, weight
• Required temperature and material type
• Available power

Nagrzewnica indukcyjna GIANT XL TURBO 40, 100 kVA
