Hersteller: Mitsubishi

Intelligente Leistungsmodule DIPIPM 600V, 1200V

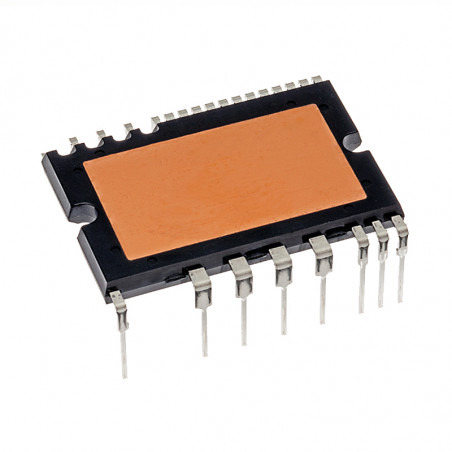

DIPIPM™ (Dual In-line Package Intelligent Power Module) modules used in small motor drivers are produced in three types of packages: Super Mini DIPIPM™, Mini DIPIPM™ and Large DIPIPM™.

DIP-IPM Product Line-Up (For new designs*)

Product Series Current 600V 1200V

Super Mini-DIP

Moduły DIPIPM™ Super Mini-DIP 		5A

PSS05S92F6


10A

PSS10S92F6


15A

PSS15S92F6


20A

PSS20S92F6


30A

PSS30S92F6


35A

PSS35S92F6



Mini-DIP

Moduły DIPIPM™ Mini-DIP		 5A

PSS05S72FT**
10A

PSS10S72FT**
20A

PSS20S71F6


30A

PSS30S71F6


50A

PSS50S71F6



Large DIP

Moduły DIPIPM™ Large DIP		 5A

PSS05SA2FT
10A

PSS10SA2FT
15A

PSS15SA2FT
25A

PSS25SA2FT
35A

PSS35SA2FT
50A

PS21A79

PSS50SA2FT
75A

PS21A7A


* This table does not include older types that are still in mass production. This does not imply impending obsolescence of these types.
** Does not meet UL840 or IEC60335-40 spacing. Use large DIP is this is required.

Basic features:

  • Highest Reliability
  • Lowest cost
  • Unsurpassed Efficiency
  • Reduced Parts Count
  • Smallest size
  • Simlified Assembly
  • Wide Line-Up
