Hersteller: DetasUltra

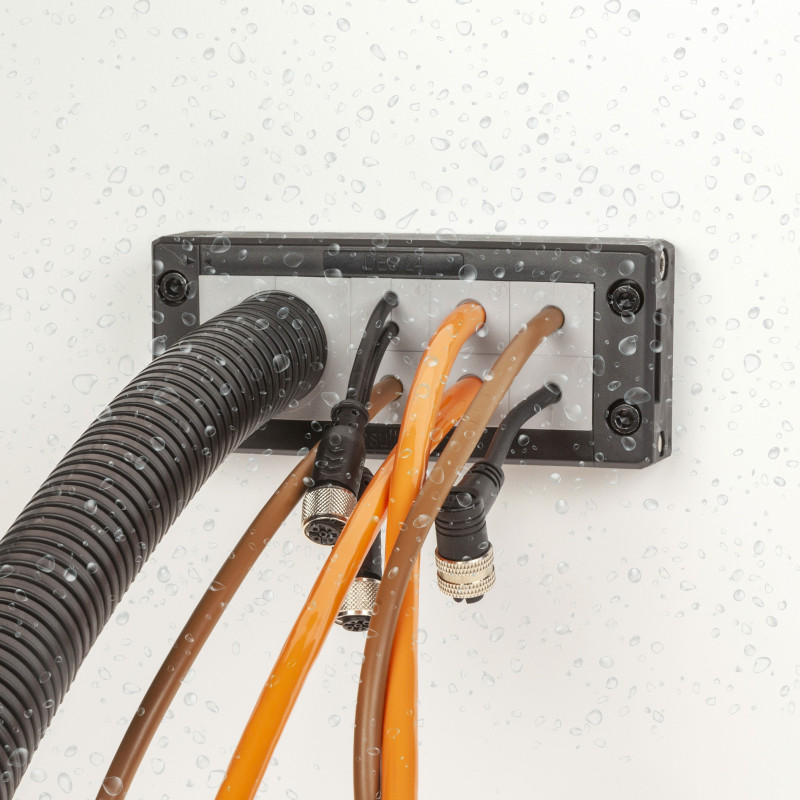

DES 24A - Kabeleinführungsrahmen

  • 1731310024
  • Produkttyp Modulare Kabelverschraubungen
  • Öffnung 112 x 36

The DES 24 divisible frame allows the routing of cables with or without connectors with diameters from 2 to 35 mm thanks to the various cable grommets available. The side closure of the frame allows strain relief, dust and water protection.

  • Multiple configurations in the same frame and highest water protection with all the combinations of grommets.
  • Frame screws in AISI304 Stainless Steel
  • IP66 certified, Nema 4X* with any combination of grommets
  • Strain relief according to EN 62444
  • Robust construction IK10
  • Integrated gasket
  • ATEX version on request
  • Threaded inserts version on request

*4X for indoor use only

  • Material: PP+GF
  • Flammability: self-extinguishing according to UL94-V0
  • Temperature: -40°C... +155°C (static)
  • Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Model Code Max. opening [mm]
DES 24 1731010024 112 x 36
DES 24A 1731310024 112 x 36
