Hersteller: DetasUltra

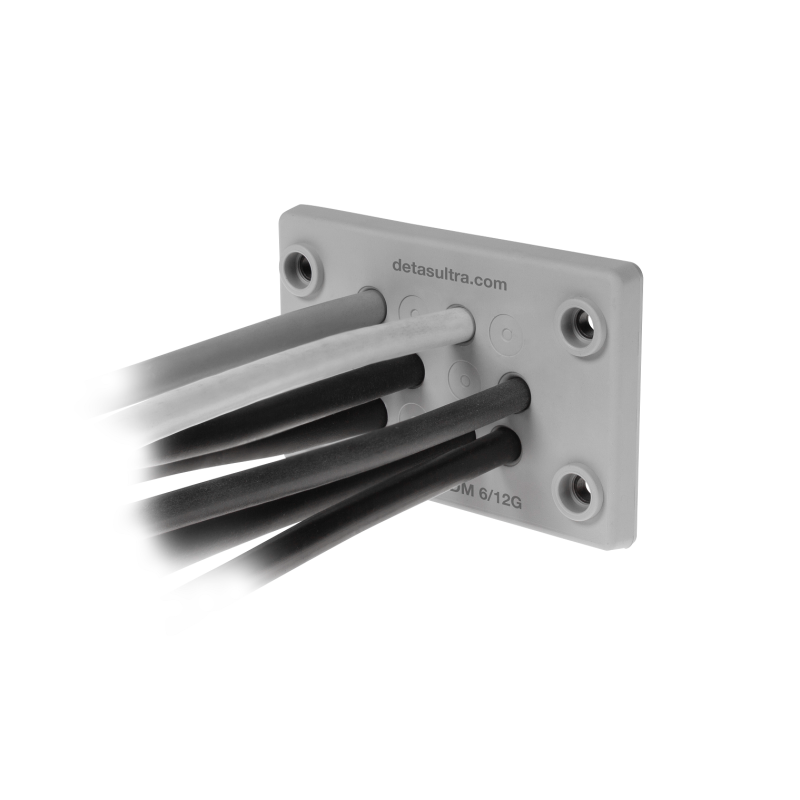

DES PMH 6/12G - Kabeleinführungsplatten

  • 1732010612
  • Maße 87 x 55,6
  • Produkttyp Przepusty kablowe
  • 12 - 4,4 / 8,1 ∅

DES PMH 6 cable entry plates are an economical and reliable alternative to standard industrial cable glands.

  • High number of cables that can be used
  • High strain relief thanks to the double membrane
  • Saves space and installation time compared with traditional cable glands
  • Protection up to IP66
  • Compact dimensions
  • Material: TPE + PA
  • Flammability: UL94-V0, self-extinguishing
  • Temperature: -40°C... +105°C (static)
  • Properties:halogen-free, silicone-free
Model Code Dimensions [mm] Cut-out Dimensions [mm] No. cables - Ø cables [mm]
DES PMH 6/12G 1732010612 36 x 52 87 x 55,6
12 - 4,4 / 8,1
DES PMH 6/18G 1732010618 36 x 52 87 x 55,6
18 - 3,1 / 6,5
