Hersteller: DetasUltra

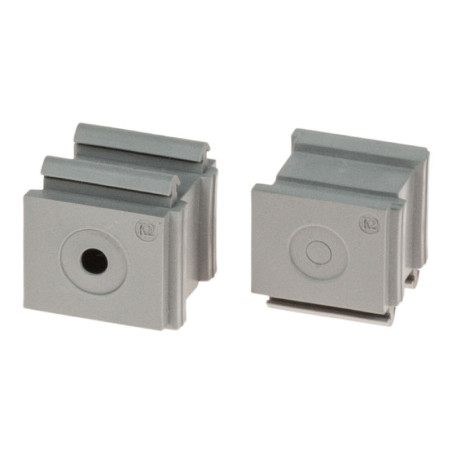

SPP K2BA - Tüllen

  • 1731323115
  • Produkttyp Dichtungsmodule

Blind single cable grommets with extended-range are part of the SPP K series and allow cables without connectors ( diameters 2,5-16,5mm (K1-K5) to be routed into the DES splittable frames series .

  • Cable grommets with double membrane for cables without connectors with diameters from 2.5 to 16.5 mm (K1-K5)
  • Long lasting product and high resistance to industrial oils.
  • Colours grey and black
  • UL94-V0 for both colours
  • Material: TPE
  • Flammability: self-extinguishing according to UL94-V0 (grey or black)
  • Temperature: -40°C... +110°C (static)
  • Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Model Code
SPP K0G 1731021100
SPP K1G 1731021110
SPP K2G 1731021115
SPP K3G 1731021120
SPP K4G 1731021125
SPP K5G 1731021127
SPP K0B 1731023100
SPP K1B 1731023110
SPP K2B 1731023115
SPP K3B 1731023120
SPP K4B 1731023125
SPP K5B 1731023127
SPP K0BA 1731323100
SPP K1BA 1731323110
SPP K2BA 1731323115
SPP K3BA 1731323120
SPP K4BA 1731323125
SPP K5BA 1731323127
