C-CAP 01 Water-cooled capacitors

C-Cap is a new innovative capacitor that was developed by Celem. It is protected by US Patent 9799454 and US Patent 9865398.

  • Temperature switch: Normally Closed, 24V, 1A, recommended wire size 16-28AWG. Opens at 55°C.
  • Mounting: Recommended torque for M16: 8-10 Nm, recommended torque for M6: 5Nm. Celem can supply designated bus-bars.
  • Cooling: Maximal inlet pressure 6 Bar, maximal outlet temperature: 45°C. It is possible to get 4 straight water connectors.

Specifications

Type C-CAP 01

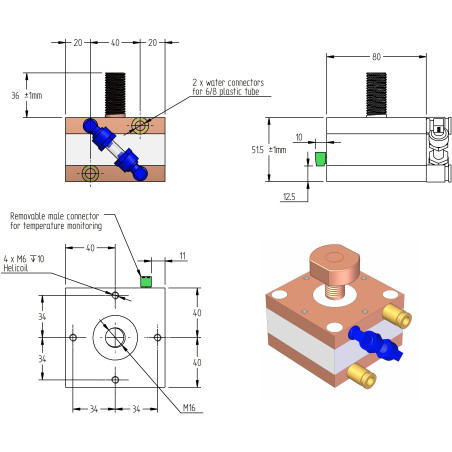

Dimensions (L x W x H) mm 80 x 80 x 51.5
Weight kg 1.5
Capacitance (±10%) µF 0.36µF 0.75µF 1.3µF 2.3µF 4µF 5.8µF 9.5µF
Sinusoidal Voltage Vrms 900 800 700 650 550 500
Peak Voltage V 1344 1202 990 919 778 707
Max. Current Arms 1000 1200 1400 1800 2000 2200 2400
Max. Power kVAr 900
Freq Range @ Half Power kHz 273-885 131-611 96-480 71-449 47-318 45-266 34-193
Freq Range @ Full Power kHz 491-491 236-340 172-267 127-249 85-177 82-148 60-107
