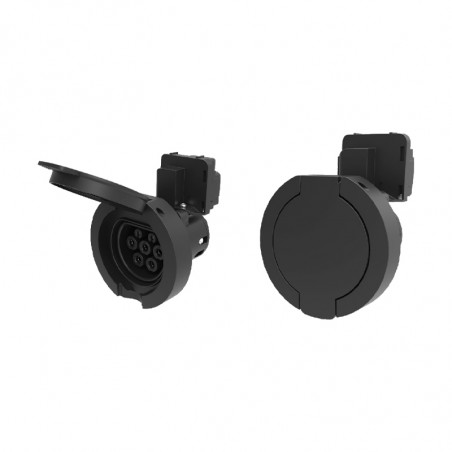

Ladebuchse - Typ 2

Charging sockets - Type 2

Type 2 charging sockets for mounting on AC electric vehicle charging stations equipped with a charging lock. It protects against disconnection of the connector under load by blocking the plug during charging. The socket design ensures durability of over 10,000 connections.

Technical data
Standard IEC62196
Charging Mode 3
Current Type AC
Connection Manner B
Ambient Temperature
(working)		 -30°C ~ 50°C
Ambient Temperature
(storage)		 30°C ~ 50°C
Ingress Protection IP54
Insertion [&] Pullout Times > 10000
Housing Material Reinforced Thermoplastic,
UL 94V- 0
Socket Material Copper Alloy, Ag Plated
Housing Color Black

Electrical parameters
Rated Current 16A, 32A
Rated Voltage 250V / 480V
Number of power Socket 3(L, N, PE)
5(L1, L2, L3, N, PE)
Signal Pin Number 2(CC, CP)
Signal Pin Current 2A
Insulation Resistance ≥5MΩ 500V DC 1min
Temperature Monitor PT1000 (optional)
Micro actuator driven Voltage DC 12V
Current consumption < 2,4A

Cable configuration
Specification Current Cable Configuration
FEAC-S-016A-P-YY-X.XM-XXAH 16A - single phase 3x2,5mm2 + 2x0,75mm2
FEAC-S-032A-P-YY-X.XM-XXAH 32A - single phase 3x6,0mm2 + 2x0,75mm2
FEAC-T-016A-P-YY-X.XM-XXAH 16A - three phase 5x2,5mm2 + 2x0,75mm2
FEAC-T-032A-P-YY-X.XM-XXAH 32A - three phase 5x6,0mm2 + 2x0,75mm2
