Ladekabel mit Typ 1 und Typ 2-Stecker
  • Ladekabel mit Typ 1 und Typ 2-Stecker

Fotos dienen nur zu Informationszwecken.

please use latin characters

Hersteller: DEGSON

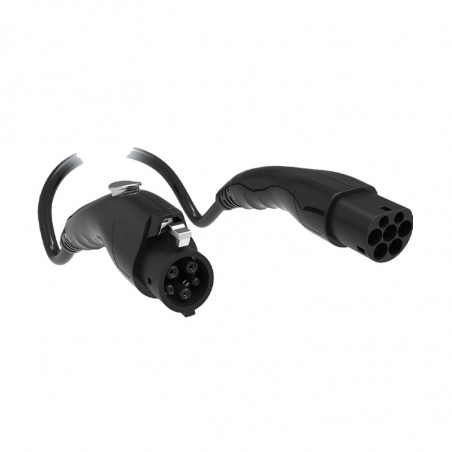

Ladekabel mit Typ 1 und Typ 2-Stecker

Charging cable with Type 1 and Type 2 connector

Charging cable with Type 1 and Type 2 connector for charging electric vehicles in mode 3. The design of the cable ensures durability of over 10,000 connections.

Technical data
Standard IEC62196
Charging Mode 2, 3
Current Type AC
Connection Manner  B
Ambient Temperature
(working)		 -30°C ~ 50°C
Ambient Temperature
(storage)		 30°C ~ 50°C
Ingress Protection IP54
Insertion [&] Pullout Times > 10000
Housing Material Reinforced Thermoplastic, UL 94V- 0
Cap Material TPU
Pin Material Copper Alloy, Ag Plated
Housing Color Black
Cable color Black

Electrical parameters
Rated Current 16A, 32A
Rated Voltage 250V / 480V
Number of power Socket 3(L, N, PE)
5(L1, L2, L3, N, PE)
Signal Pin Number 2(PP, CP)
Signal Pin Current 2A
Insulation Resistance ≥5MΩ 500V DC 1min

Cable configuration
Specification Current Cable Configuration
MHAC-S-016A-VP1-YY-X.XM-XXAH 16A EV 3x2,5mm2 + 1x0,75mm2
MHAC-S-032A-VP1-YY-X.XM-XXAH 32A EV 3x6,0mm2 + 1x0,75mm2
