Hersteller: Icel

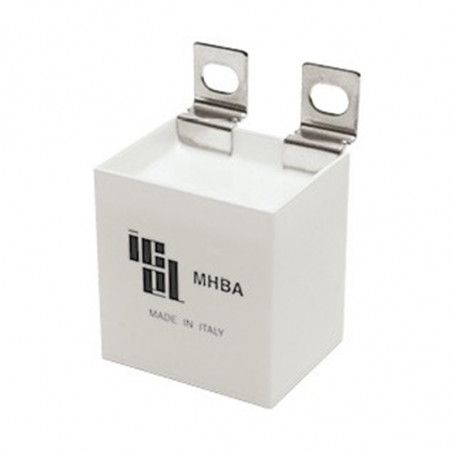

MHBA - Polypropylenkondensatoren

Main applications

  • DC capacitor for medium-low power DC-Link applications ininverters
  • AC/DC motor controls and welding equipment
  • Not suitable for AC applications: refer to MHBA/THZ/MHBS series


Execution and reference standard

  • Extended metallized film
  • Box with multiple (2 or 4) radial terminals
  • UL 94 V-0, flame retardant execution
  • IEC 61071, IEC 60068, RoHS

MHBA Ur Cn (μF) du/dt (V/μs) Irms max. (A) Nom. size B (mm) x H (mm) x L (mm) Pitch (mm)
370 Vdc (160 Vac) 3 ÷ 75 25 ÷ 55 5 ÷ 31.5 11x20x32 ÷ 38x57.5x57.5 27.5 ÷ 52.5
500 Vdc (250 Vac) 1.5 ÷ 55 32.5 ÷ 70 4.5 ÷ 30 11x20x32 ÷ 38x57.5x57.5 27.5 ÷ 52.5
600 Vdc (330 Vac) 1.2 ÷ 33 40 ÷ 90 5 ÷ 29 11x20x32 ÷ 38x57.5x57.5 27.5 ÷ 52.5
700 Vdc (380 Vac) 0.68 ÷ 25 50 ÷ 110 3.5 ÷ 27 11x20x32 ÷ 38x57.5x57.5 27.5 ÷ 52.5
800 Vdc (400 Vac) 0.47 ÷ 20 55 ÷ 120 3 ÷ 26 11x20x32 ÷ 38x57.5x57.5 27.5 ÷ 52.5



Product Card - Download
